M SERIESProduct parameters
- Model options
- M-300 / M-500 / M-800 / M-1000
- Stereo output at 8 ohm
- 300 W / 500 W / 800 W / 1,000 W per model
- Stereo output at 4 ohm
- 450 W / 750 W / 1,200 W / 1,500 W per model
- Bridge output at 8 ohm
- 900 W / 1,500 W / 2,400 W / 3,000 W per model
- Frequency response
- 20 Hz – 20 kHz; -3 dB at 100 kHz
- THD
- Less than 0.03%
- Signal-to-noise ratio
- More than 90–95 dB, depending on model
- Input sensitivity
- 0.8 V / 1.6 V; 20 kOhm balanced or 10 kOhm unbalanced
- Protection
- Overheat, overload, short circuit, DC, soft start, relay and clip limiter
- Dimensions / weight
- 590 x 570 x 150 mm; approximately 23–29 kg, depending on model

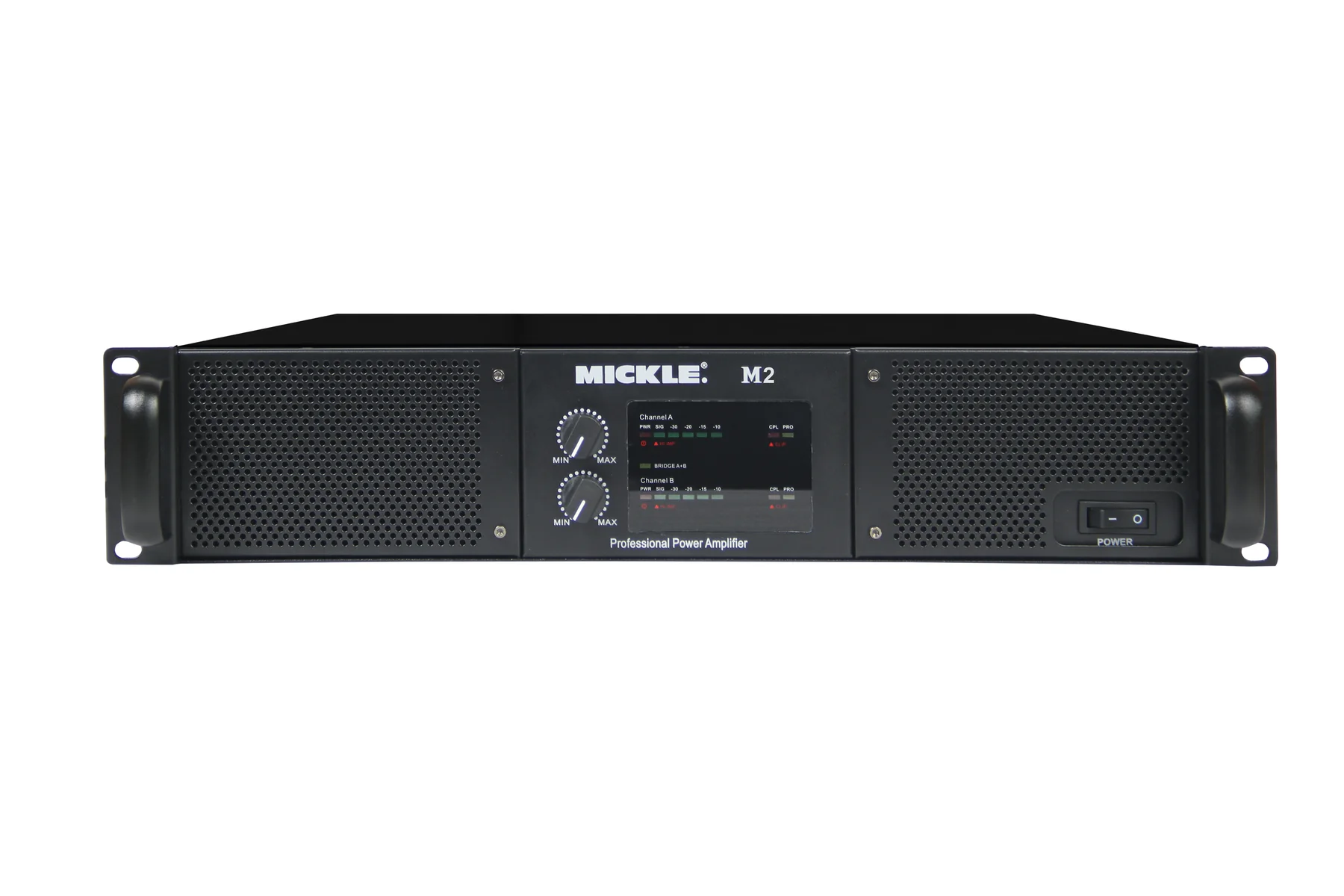

The MICKLE M Series combines efficient stereo power, low distortion, high damping factor, and practical protection in a compact rack chassis. It is a straightforward choice for mobile PA, venue systems, monitors, and fixed installations.
Applications
Mobile PAStage monitorsInstalled soundRental systems
