MICKLE PM Series Powered Mixer

Product parameters

Model options

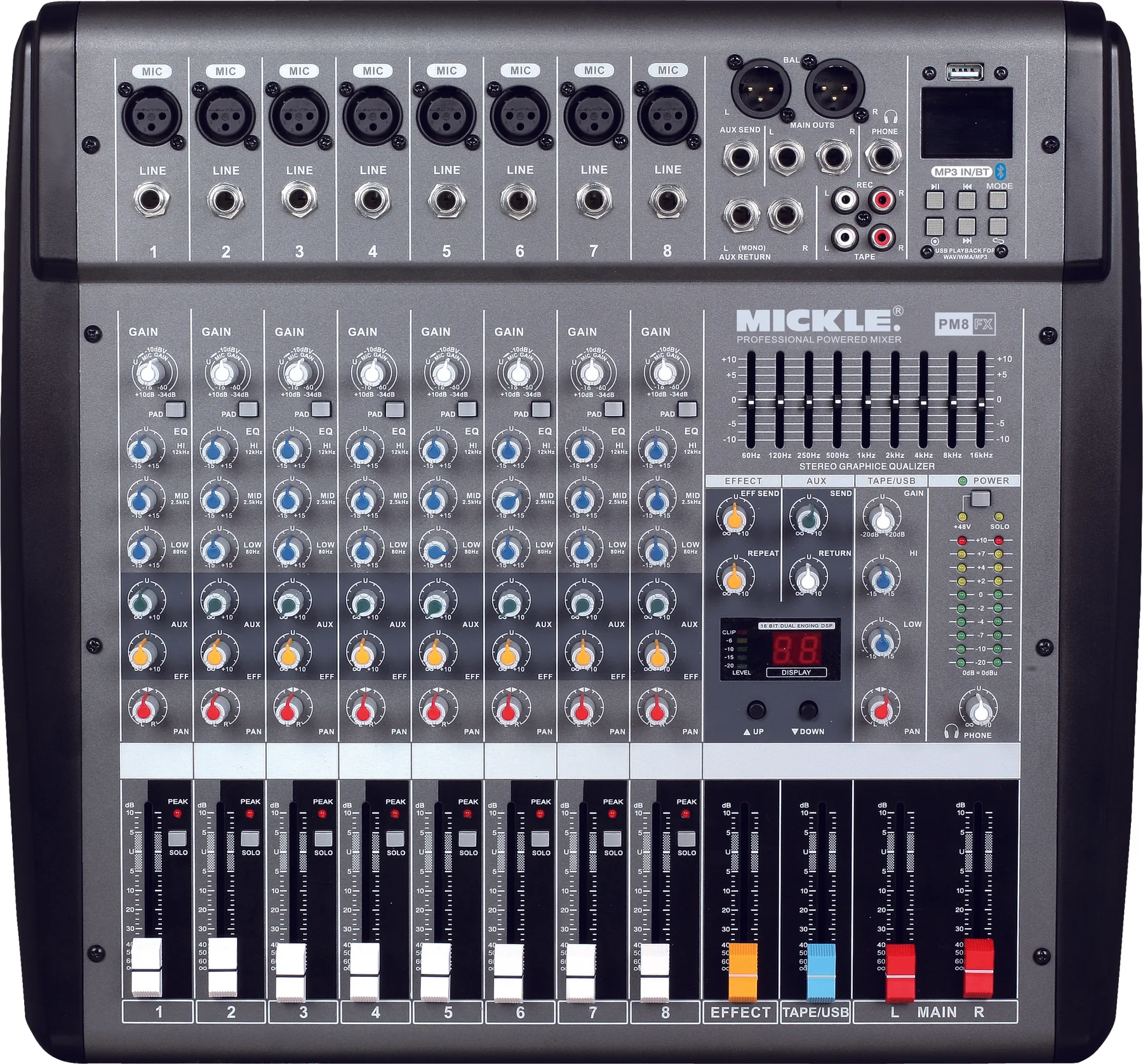

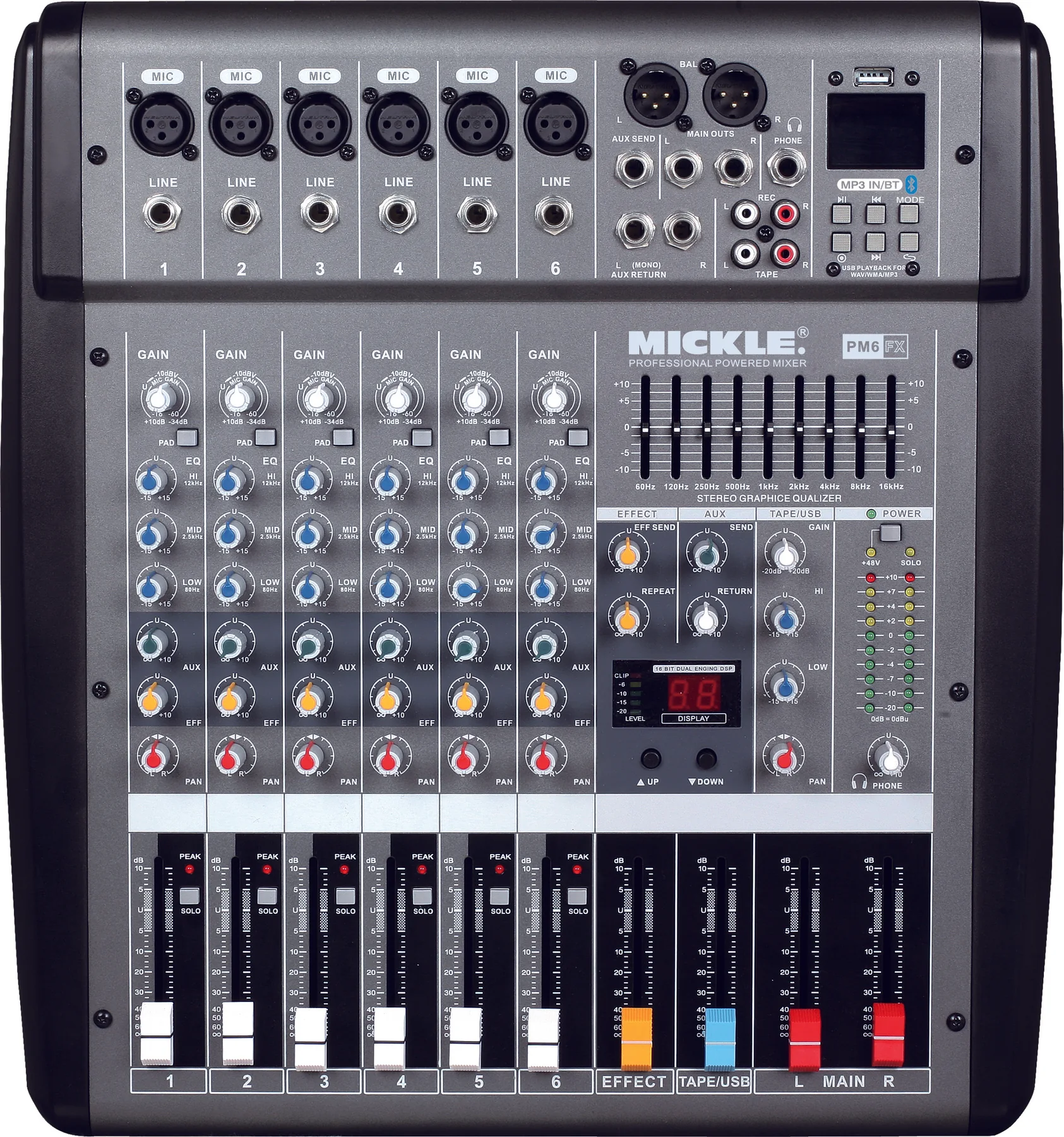

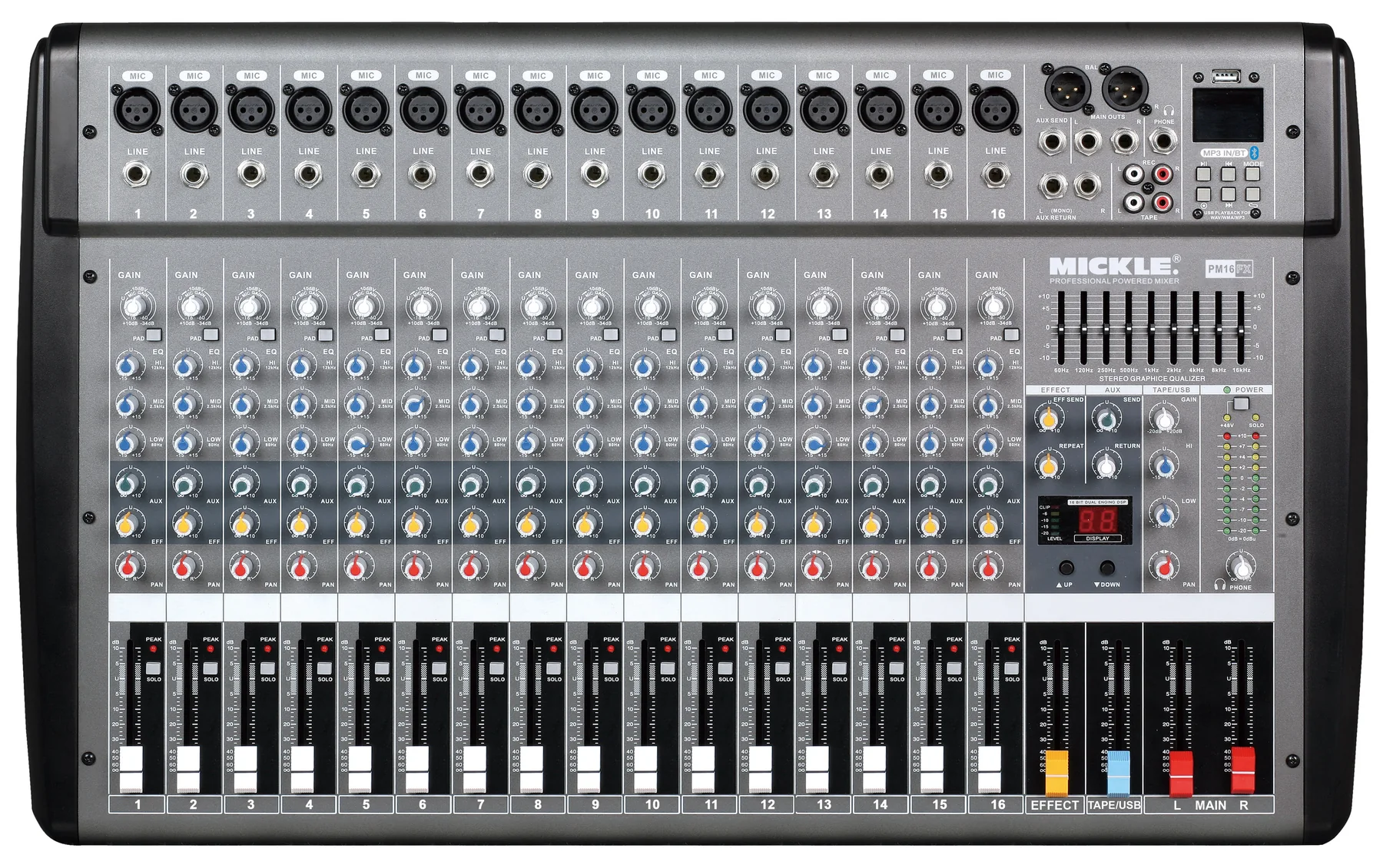

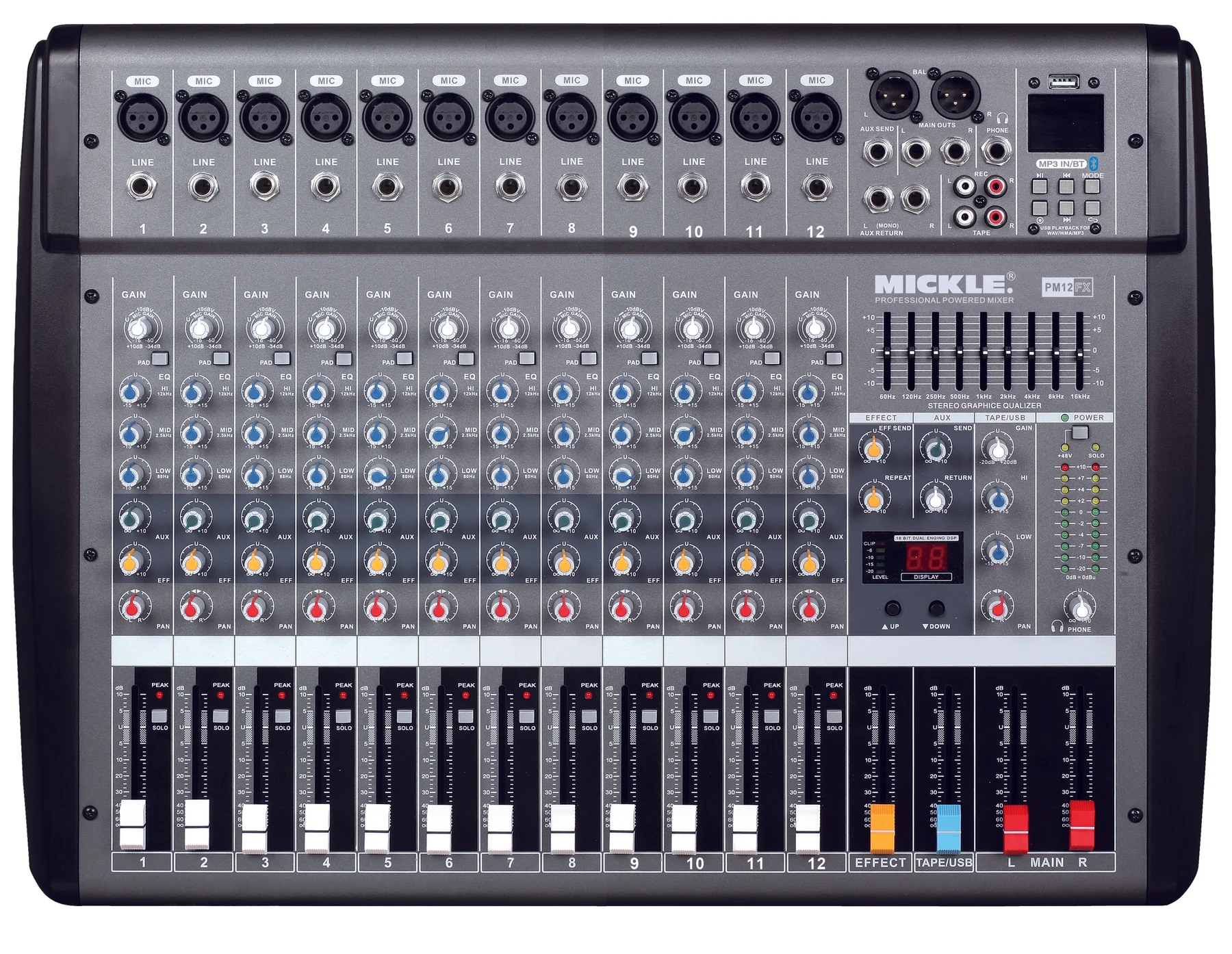

PM6FX / PM8FX / PM12FX / PM16FX

Input channels

6 / 8 / 12 / 16 mono channels respectively

Channel EQ

3-band

Routing

1 AUX send, 1 stereo return and two stereo main outputs

Effects

16 adjustable DSP effects

Master EQ

9-band graphic equalizer

Media

Bluetooth and USB playback

Power output

2 x 380 W at 4 ohm

Phantom power

+48 V

Net weight

PM6: 8.75 kg; PM8: 10.3 kg; PM12: 12.4 kg; PM16: 13.1 kg

Dimensions

PM6: 152 x 388 x 410 mm; PM8: 152 x 440 x 410 mm; PM12: 152 x 550 x 410 mm; PM16: 152 x 664 x 410 mm

The PM Series combines straightforward analog control, onboard effects, media playback, and integrated amplification for small and medium performances, meetings, mobile events, and karaoke systems.
