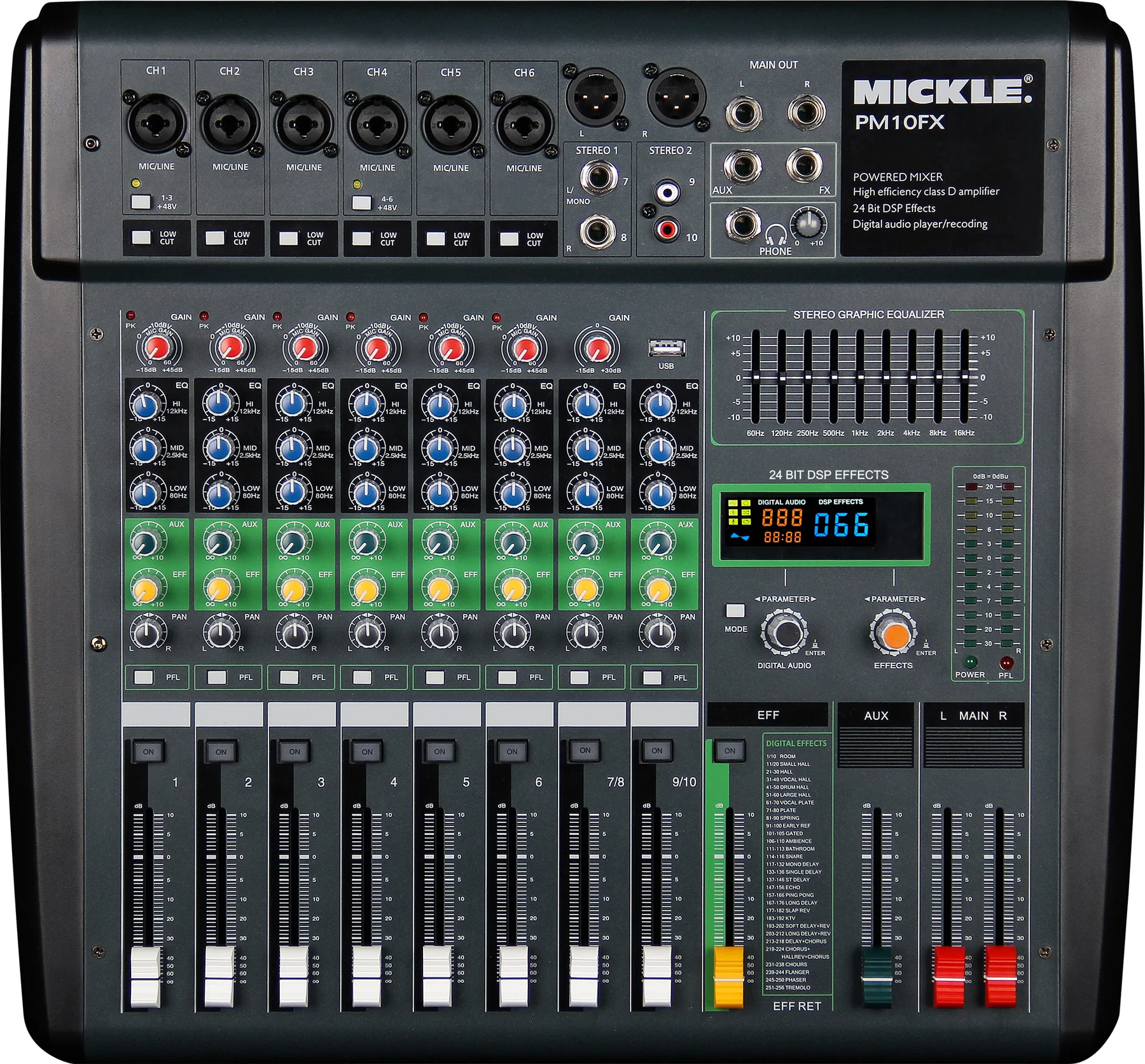

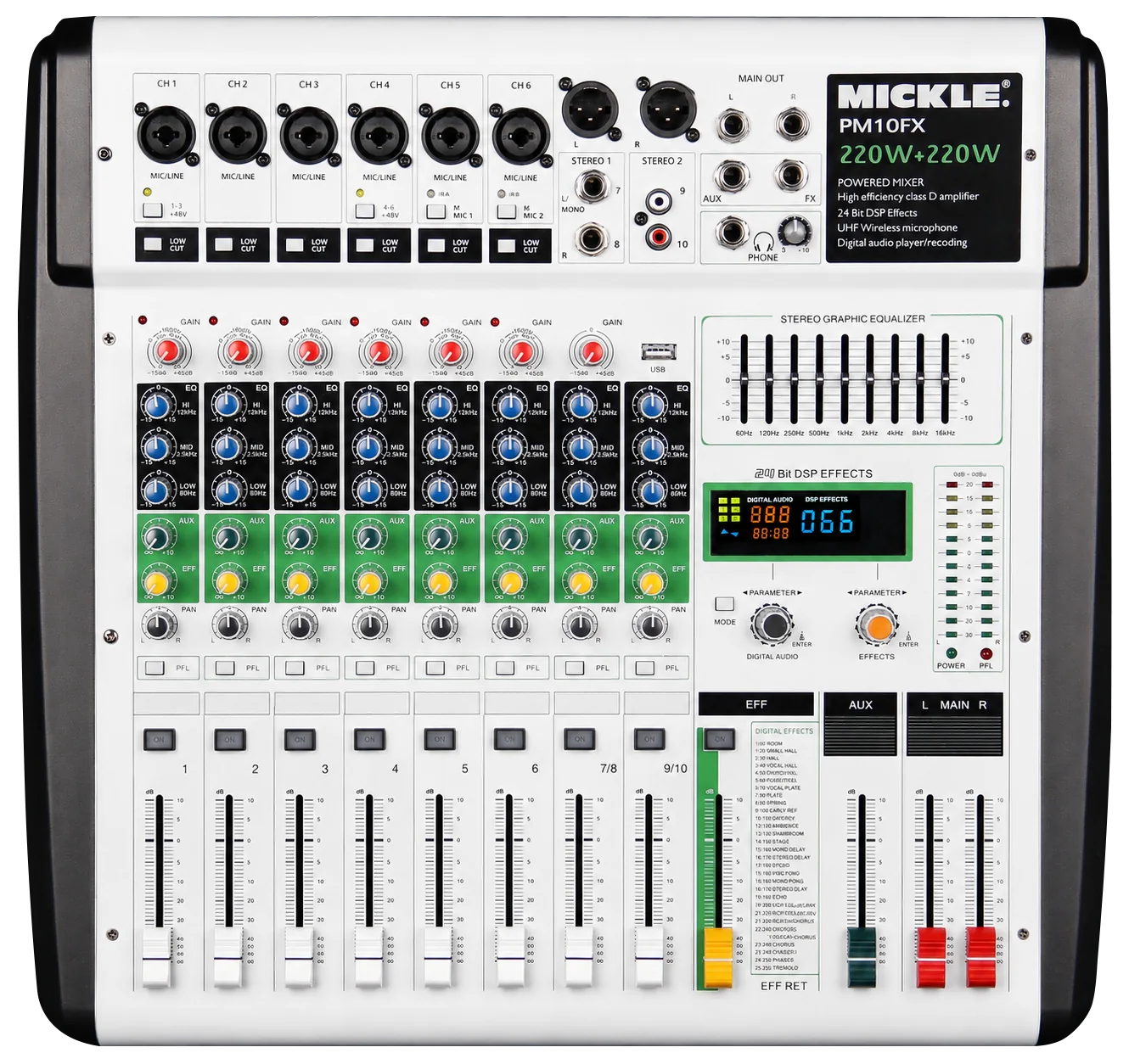

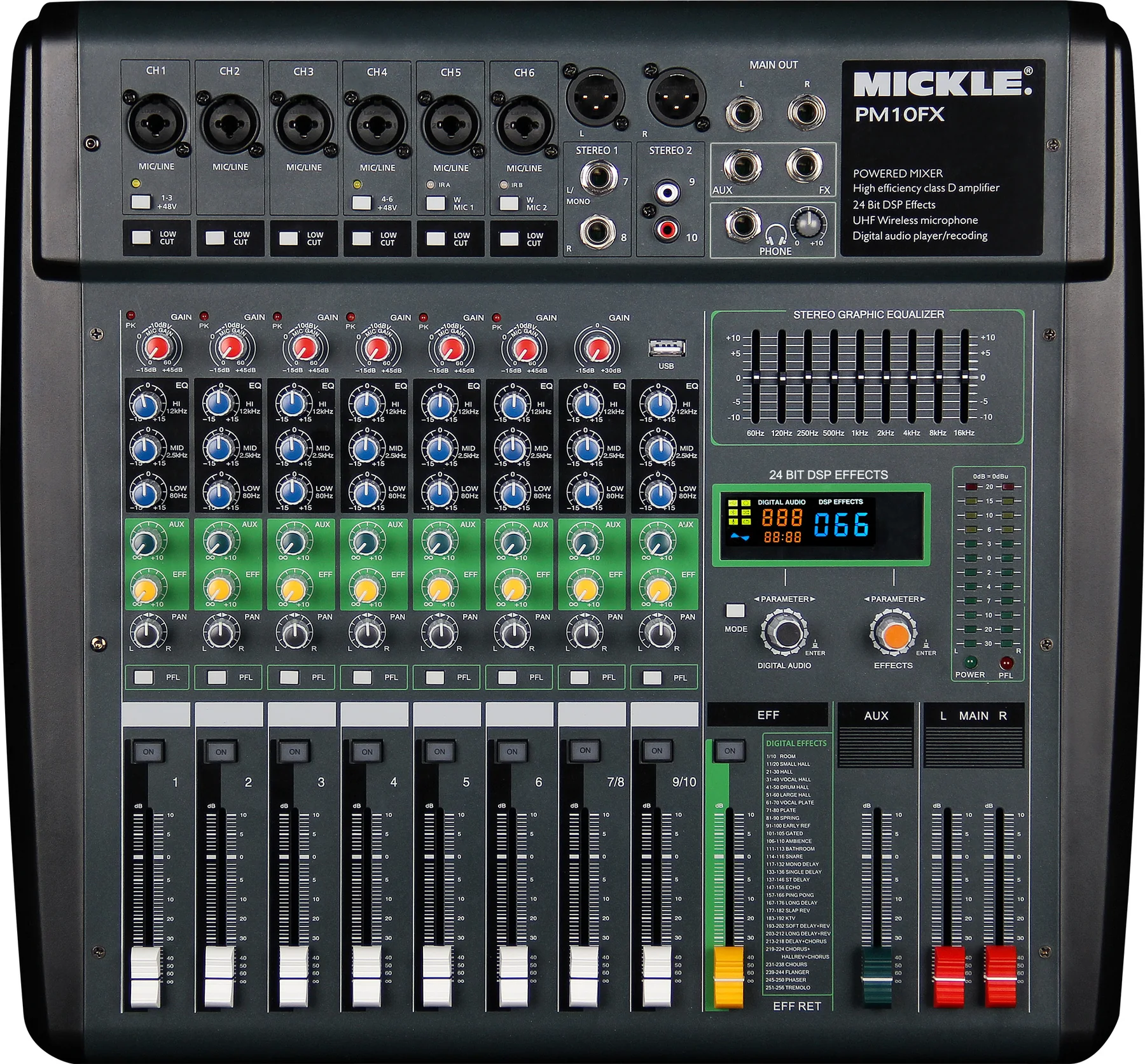

MICKLE PM10FX Powered Mixer

Product parameters

Input format

10 inputs: 6 mono microphone channels + 2 stereo channels

Channel functions

Low-cut filter, 3-band EQ, AUX, effects send, pan, mute/PFL and 60 mm fader

Effects

256 x 24-bit DSP presets with color LCD

USB audio

24-bit / 48 kHz interface for iOS, Android and PC recording/playback

Metering / power

Dual 12-segment meters and +48 V phantom power

Power output

2 x 380 W at 4 ohm

Wireless option

Optional UHF wireless microphone receiver

Rack option

Optional 19-inch rack side panels

Dimensions / weight

440 x 410 x 155 mm; 6.95 kg

The PM10FX is designed for performers, DJs, presenters, and portable PA users who need a compact mixer, integrated power, high-quality effects, computer audio, and optional wireless microphone reception.

Applications
