MICKLE PMR Series Powered Mixer

Product parameters

Model options

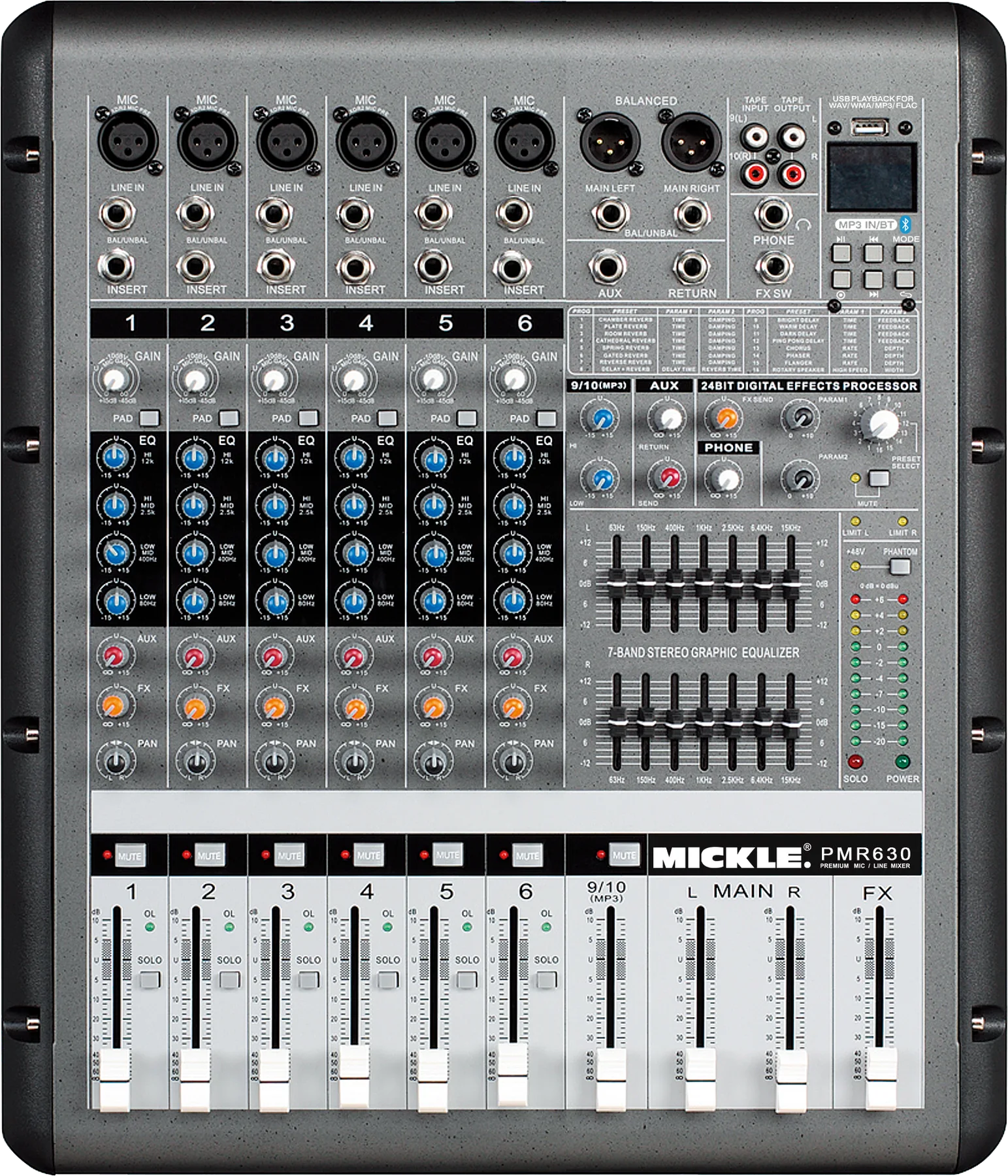

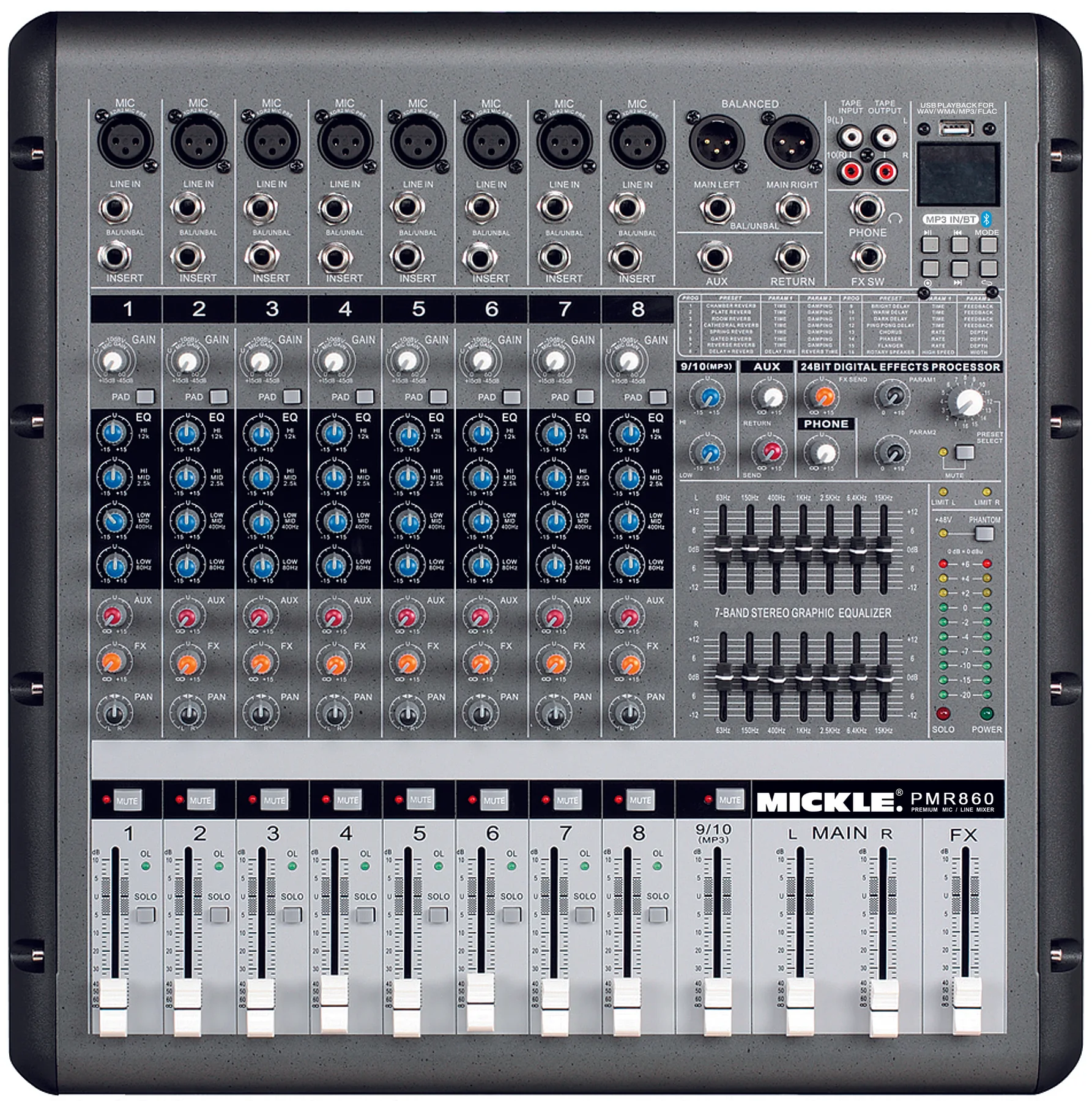

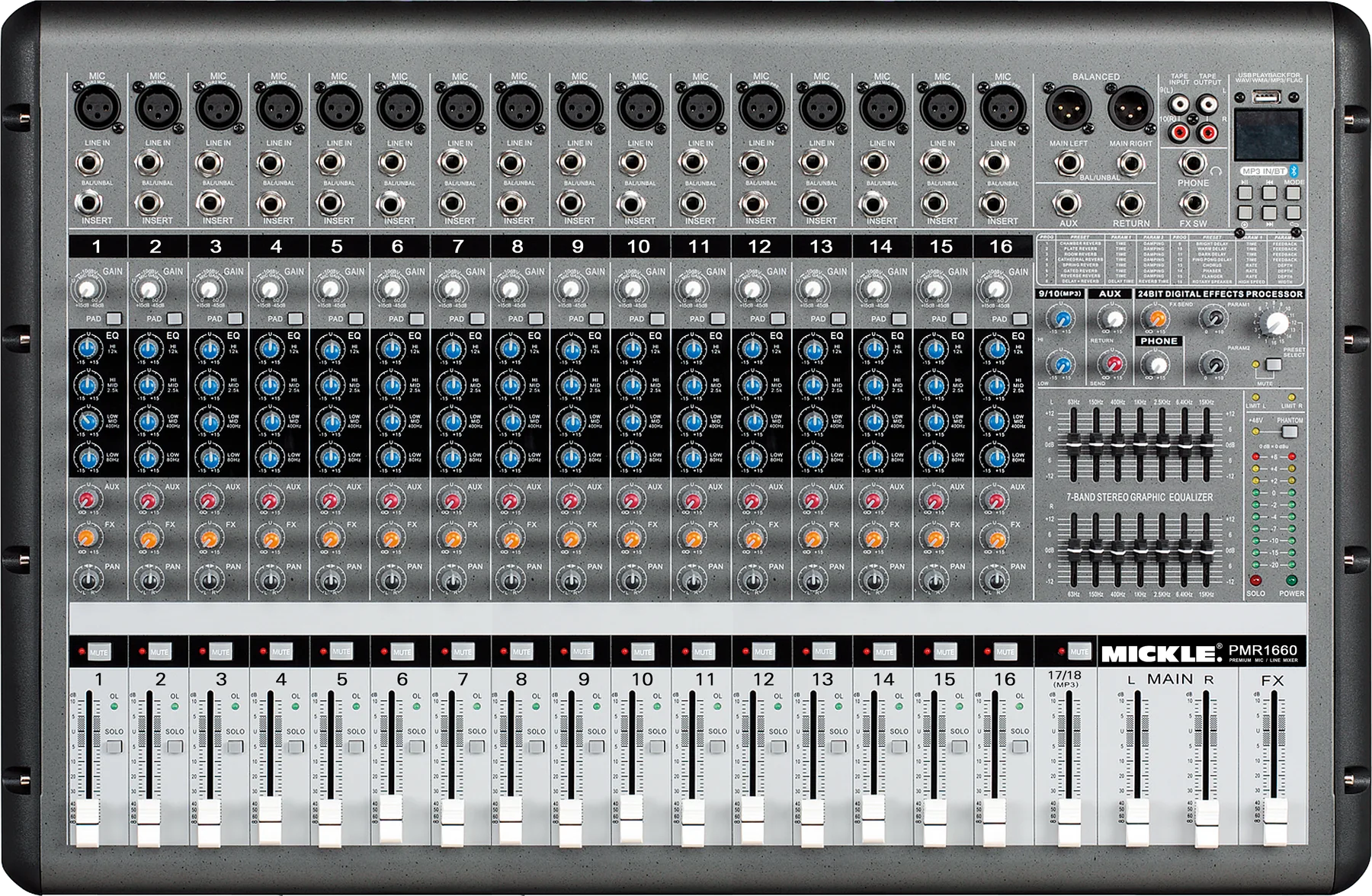

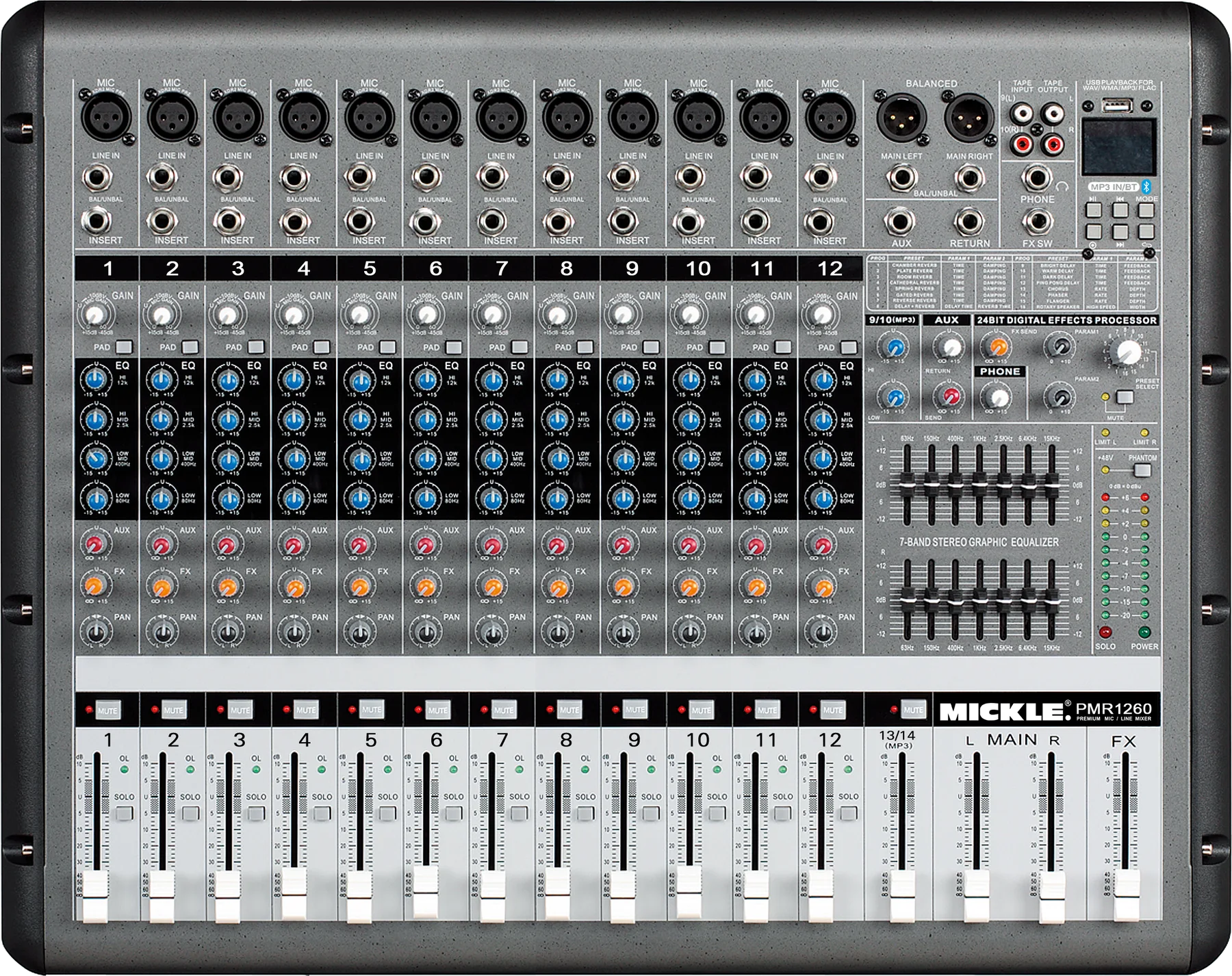

PMR630 / PMR860 / PMR1260 / PMR1660

Input channels

6 / 8 / 12 / 16 mono channels respectively

Channel EQ

4-band

Routing

1 AUX send, 1 return and two stereo main outputs

Effects

24-bit DSP

Master EQ

Dual 7-band graphic equalizer

Media / output

Bluetooth and USB/record playback; balanced XLR output

Power output

PMR630: 2 x 350 W / 4 ohm; PMR860, PMR1260 and PMR1660: 2 x 650 W / 4 ohm

Phantom power

+48 V

Net weight

12.7 / 14.7 / 16.65 / 18.6 kg respectively

Dimensions

PMR630: 190 x 400 x 485 mm; PMR860: 190 x 454 x 485 mm; PMR1260: 190 x 570 x 485 mm; PMR1660: 190 x 690 x 485 mm

The PMR Series combines MICKLE analog mixing controls with efficient amplification, media playback, balanced outputs, and rugged portable construction for live events and installed sound.

Applications
