MAMICKLEPro Audio

Powered Mixers

MICKLE PMR XP Series Four-Channel Powered Mixer

Four-channel amplified PMR XP platform with 12- or 16-channel mixing, dual 24-bit effects, feedback suppression, subwoofer output, USB audio, and high-output XP4/XP8 variants.

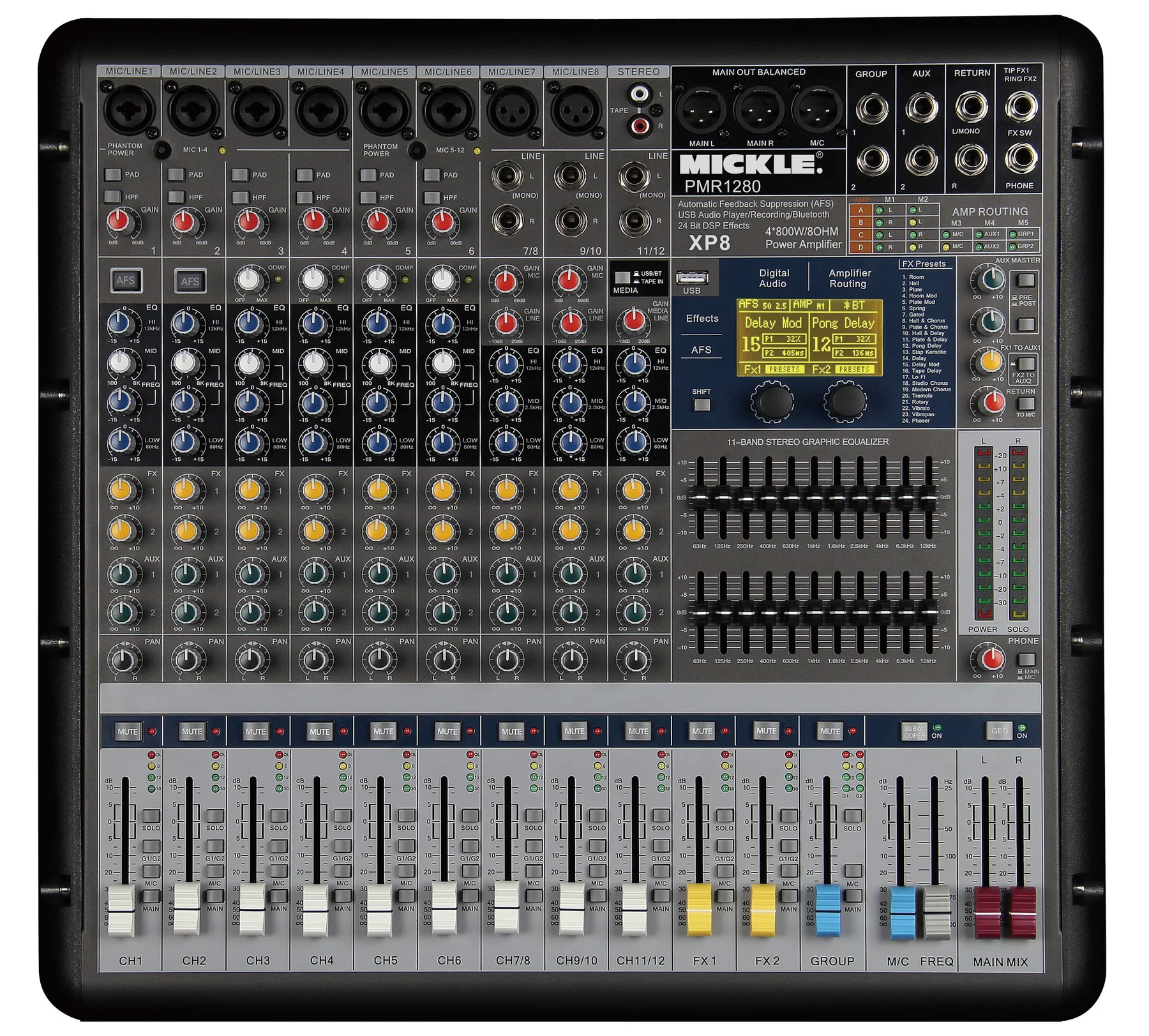

MICKLE PMR1280 XP4 powered mixer straight-on front view
MICKLE PMR1280 XP4 powered mixer straight-on front viewHover to zoom
4-CH POWER

Product parameters

Model options
PMR1280 XP4 / XP8; PMR1680 XP4 / XP8
Input format
PMR1280: 6 mono + 3 stereo; PMR1680: 10 mono + 3 stereo
Channel EQ
3-band with sweepable mid; PAD and high-pass filter on mono channels
Buses
2 AUX sends, 1 stereo return, 2 groups and independent subwoofer output
Effects
Dual 24-bit DSP banks with 24 presets each
Master processing
Stereo graphic EQ and adjustable AFS feedback suppression
USB audio
24-bit / 48 kHz recording and playback interface
Powered variants
Supplied XP4 image is labeled 4 x 350 W / 8 ohm; supplied XP8 image is labeled 4 x 800 W / 8 ohm
Phantom power
+48 V in grouped supply sections
Net weight
PMR1280 XP4: 13.2 kg; XP8: 14.5 kg; PMR1680 XP4: 15.15 kg; XP8: 16.4 kg
Dimensions
PMR1280: 471 x 485 x 190 mm; PMR1680: 587 x 485 x 190 mm

The PMR XP Series adds four amplified output channels, advanced feedback management, dual effects, graphic EQ, USB recording/playback, and flexible group routing for demanding mobile and installed systems.

Applications

Multi-function hallsTouring systemsSubwoofer-based PA
