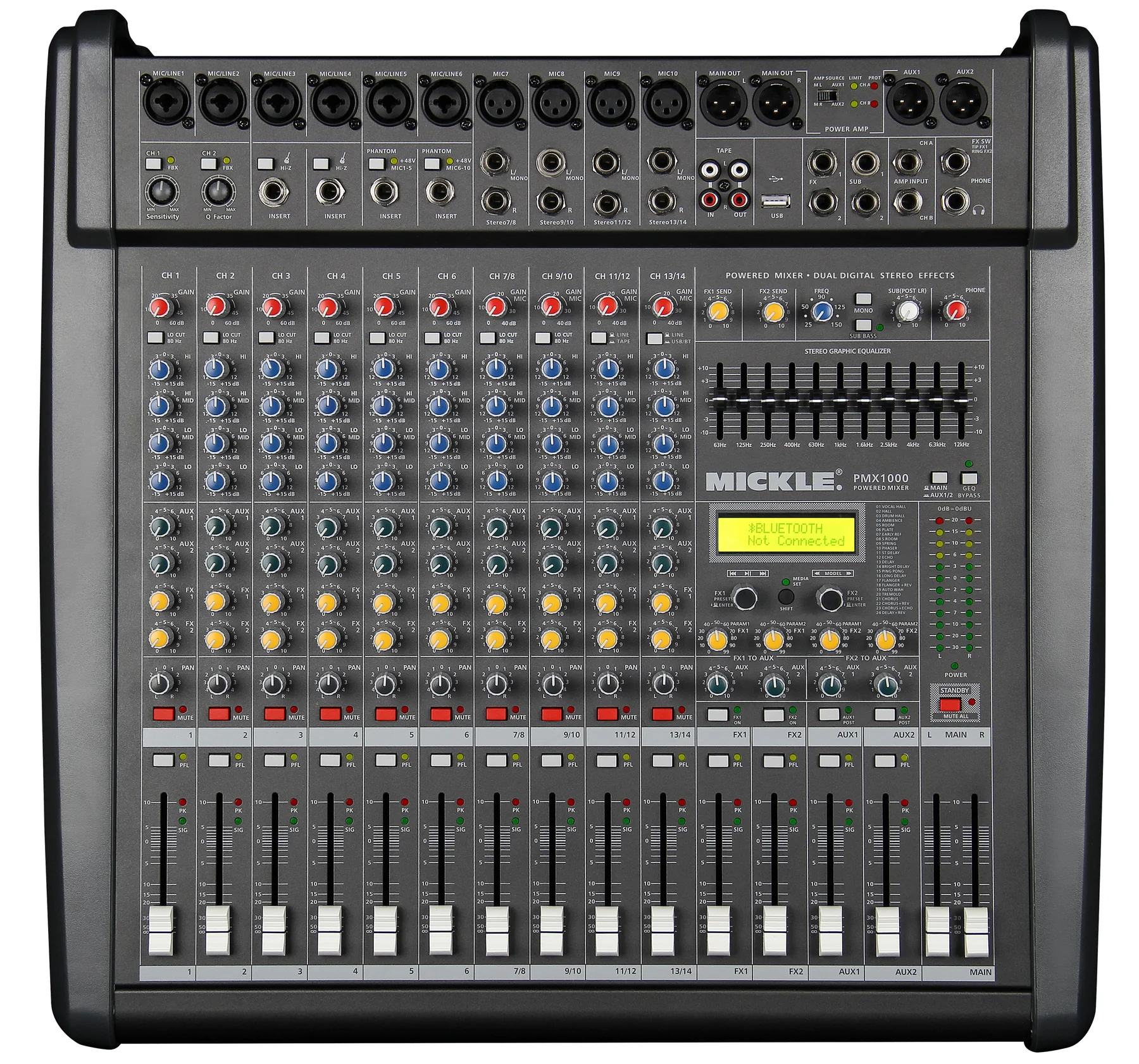

MICKLE PMX1000 Powered Mixer

Product parameters

Input format

10 inputs: 6 mono + 4 stereo

Input functions

Low-cut filtering; FBX on channels 1-2; Hi-Z on channels 3-4

Channel EQ

4-band: high, high-mid, low-mid and low

Routing

2 AUX sends, effects bus, 2 subgroups and tape I/O

Effects

Two editable banks with 24 high-quality presets

Master EQ

11-band stereo graphic equalizer

USB audio

24-bit / 48 kHz recording and playback interface

Media / display

USB playback with LCD matrix display

Power options

2 x 350 W / 8 ohm or 2 x 800 W / 8 ohm

Dimensions / weight

500 x 515 x 150 mm; 11.3 kg

The PMX1000 combines Class-A microphone preamps, flexible analog routing, dual editable effects, media playback, recording, feedback management, and efficient Class-D amplification for portable and installed systems.
