MICKLE RPM7800 Stereo Powered Mixer

Product parameters

Input format

6 mono mic/line channels + stereo channels 7/8 and 9/10

Channel controls

Gain, 3-band EQ, effect send, pan and level

Phantom power

Per-channel 48 V switching on mono microphone inputs

Effects

99 DSP presets with dedicated send and return controls

Master EQ

Dual 7-band stereo graphic equalizer

Media

USB media playback with Bluetooth mode

Analog I/O

Record input/output, effect send/return, headphones and left/right main outputs

Powered output design

Stereo powered-mixer architecture for direct loudspeaker system connection

Enclosure

Reinforced box cabinet with corner guards and side handle

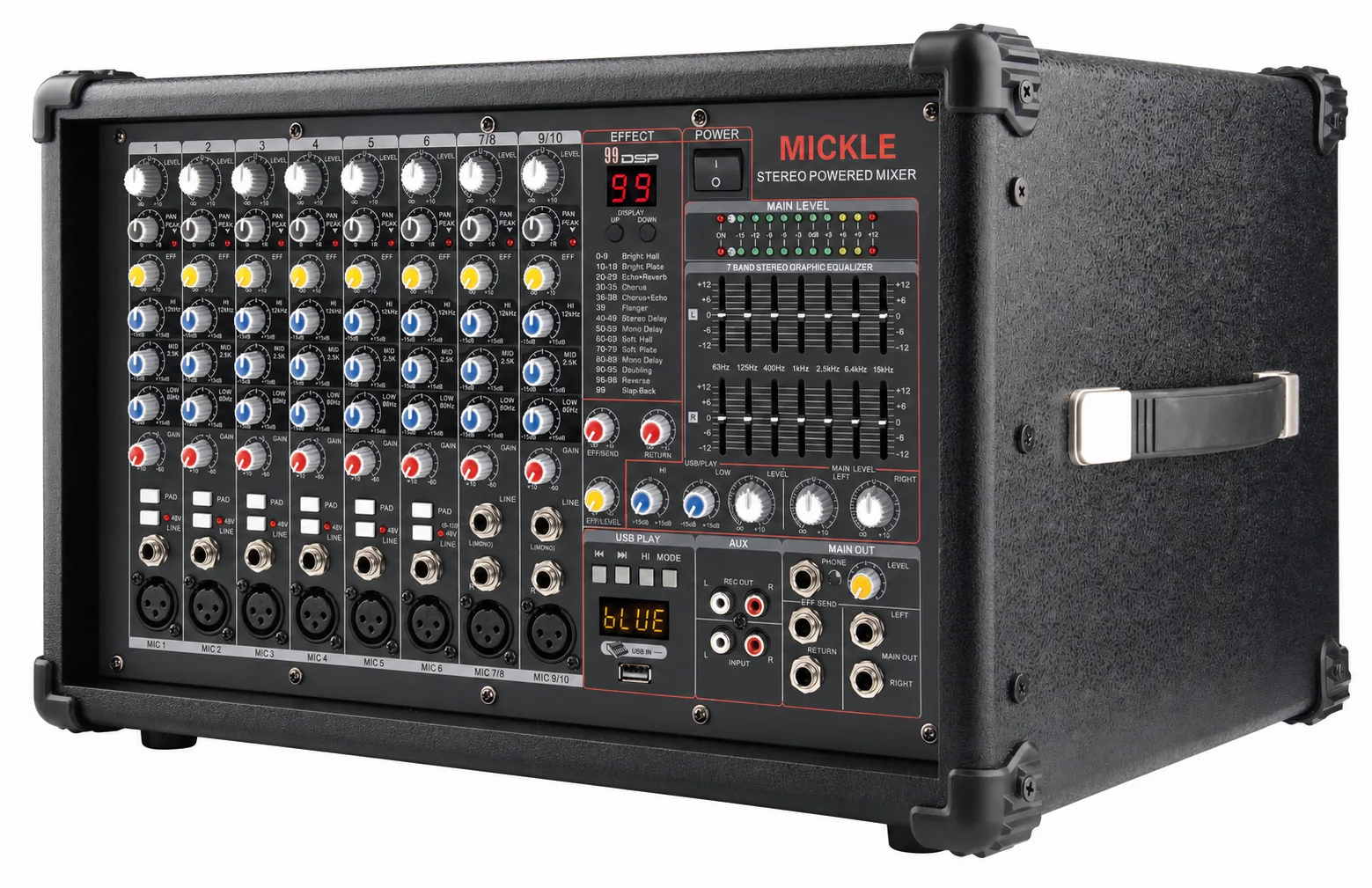

The MICKLE RPM7800 is a self-contained powered-mixer platform for portable live sound. Its front panel places microphone inputs, stereo sources, effects, media playback, master equalization, monitoring, and main-output control in one easy-to-operate surface.

Applications
