D-240 USB Compact Mixer

Product parameters

Model

D-240

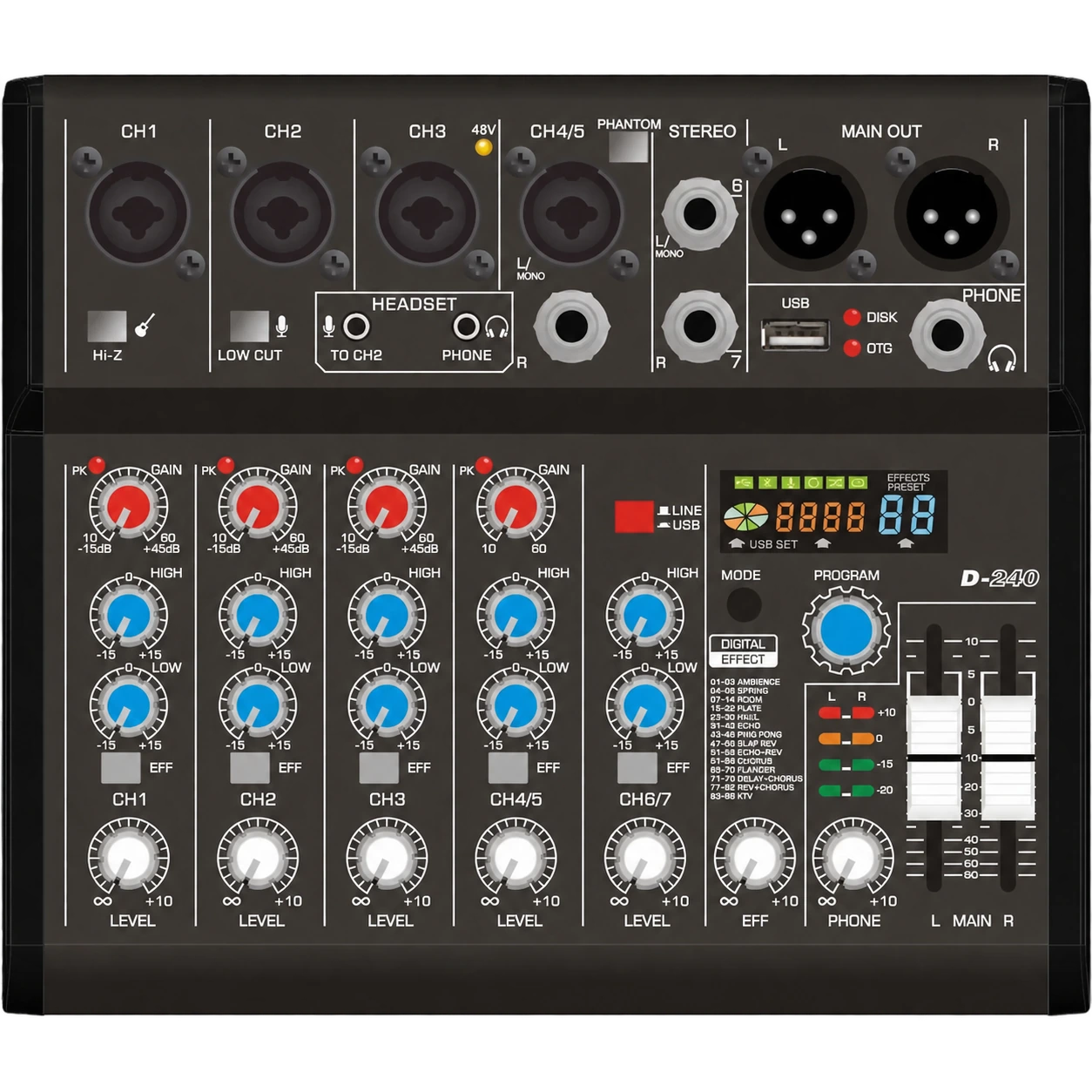

Channel layout

Panel sections marked CH1, CH2, CH3, CH4/5 and CH6/7

Mic/line connections

Four combination-style sockets; additional jack inputs in the stereo sections

Channel controls

Gain controls on the first four strips; HIGH/LOW EQ, effects send switching and level controls

Input switches

Hi-Z switch on CH1; LOW CUT switch on CH2; shared 48 V phantom-power switch

Main outputs

Left and right XLR outputs with separate main faders

Monitoring

Headphone output and PHONE control; headset sockets marked TO CH2 and PHONE

Effects section

DIGITAL EFFECT section with MODE and PROGRAM controls, display and EFF level

Front USB section

USB connector with DISK / OTG indicators and LINE / USB selection

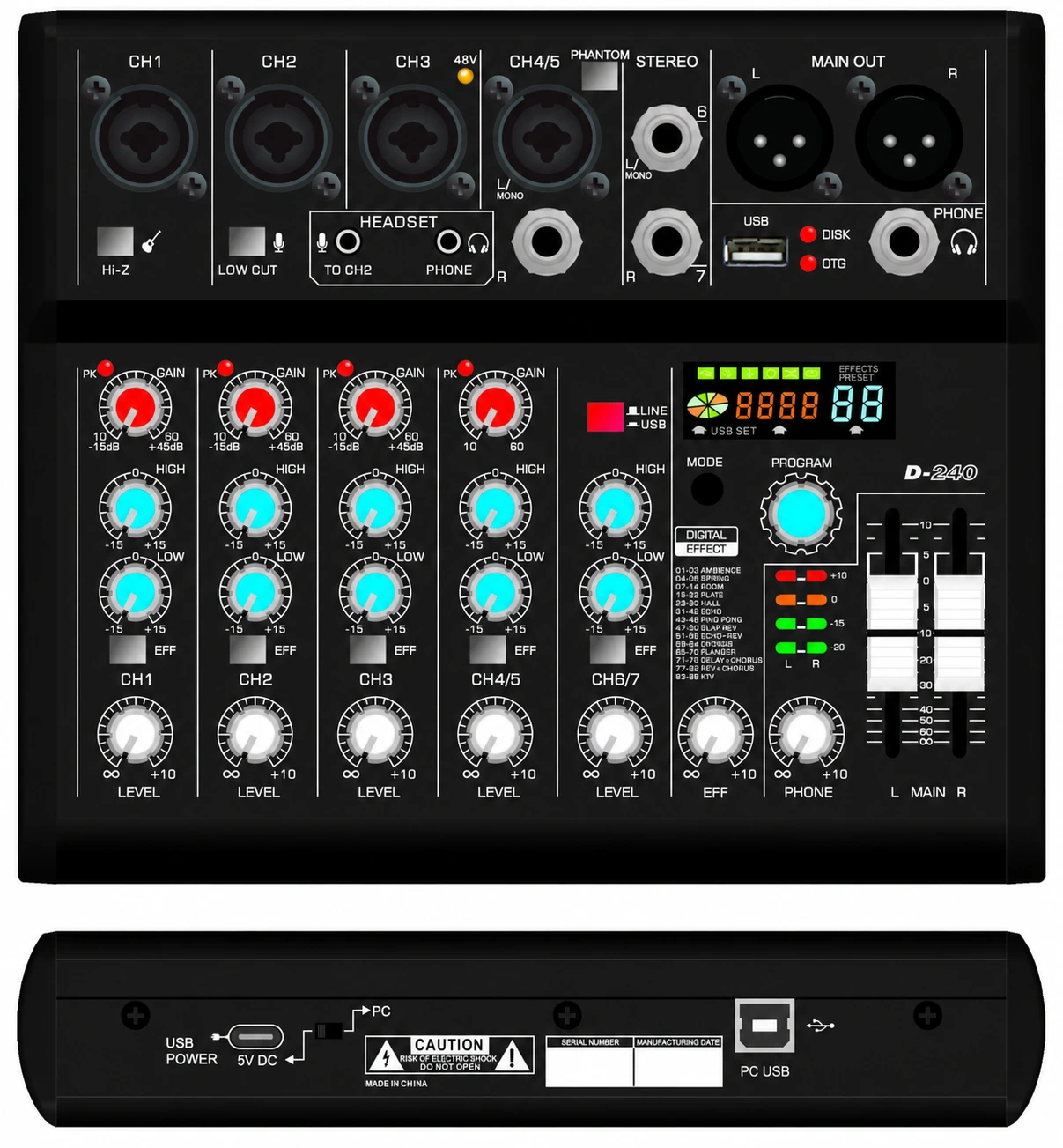

Rear connections

USB POWER marked 5 V DC and a separate PC USB connector

Ordering checks

Confirm USB audio modes, device compatibility, required power source and included accessories with the sales team

Bring microphone and stereo sources together in a compact desktop layout. The D-240 combines direct gain and level controls with HIGH/LOW EQ, channel effects sends and a dedicated effects section. XLR main outputs and separate headphone controls help organize a small performance, presentation or content-production setup. The front panel includes Hi-Z and low-cut switches, a 48 V phantom-power switch and a headset connection area. Rear connections are labeled 5 V DC USB power and PC USB. Contact our team to confirm computer or mobile-device compatibility, the exact USB audio modes and the power supply required for your intended configuration before ordering.
