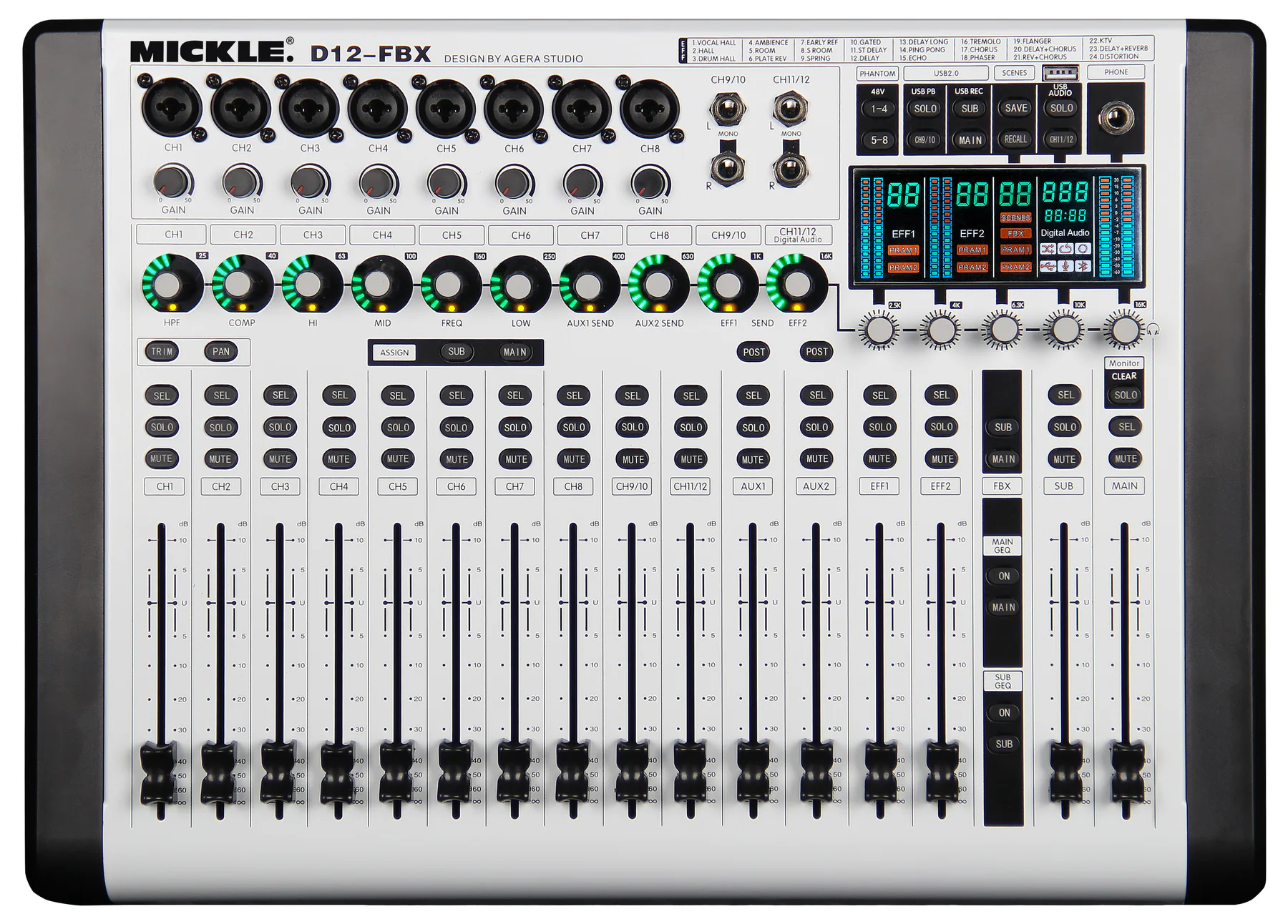

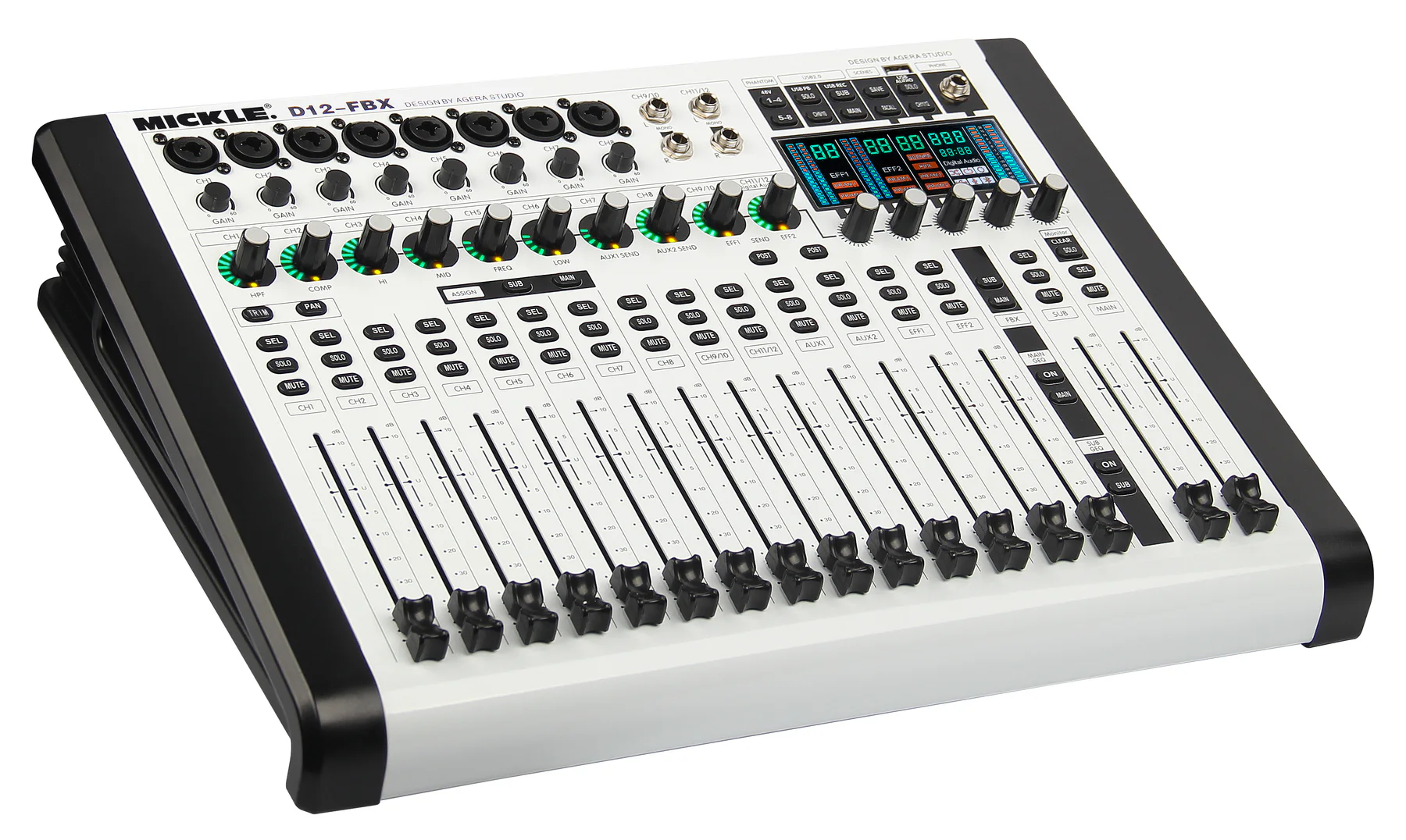

MICKLE D12-FBX Digital Mixer

Product parameters

Input format

12 inputs: 8 mono + 2 stereo channels

Audio resolution

24-bit / 192 kHz

Channel processing

High-pass filter, compressor, electronic gain and 3-band EQ

Display / control

Integrated LCD with 10 illuminated rotary controls

Processing

Dual 24 × 24-bit DSP

Scenes

10 scene memories

Feedback control

FBX with adjustable Q and sensitivity

Outputs

AES, MAIN, SUB and AUX on XLR; monitor/effect connections on TRS

Master processing

15-band graphic EQ; 100 mm faders

Dimensions / weight

465 × 325 × 105 mm; 5.05 kg

The MICKLE D12-FBX brings an approachable digital workflow to meeting spaces, small performances, and portable audio systems that need visual control in a compact footprint.
