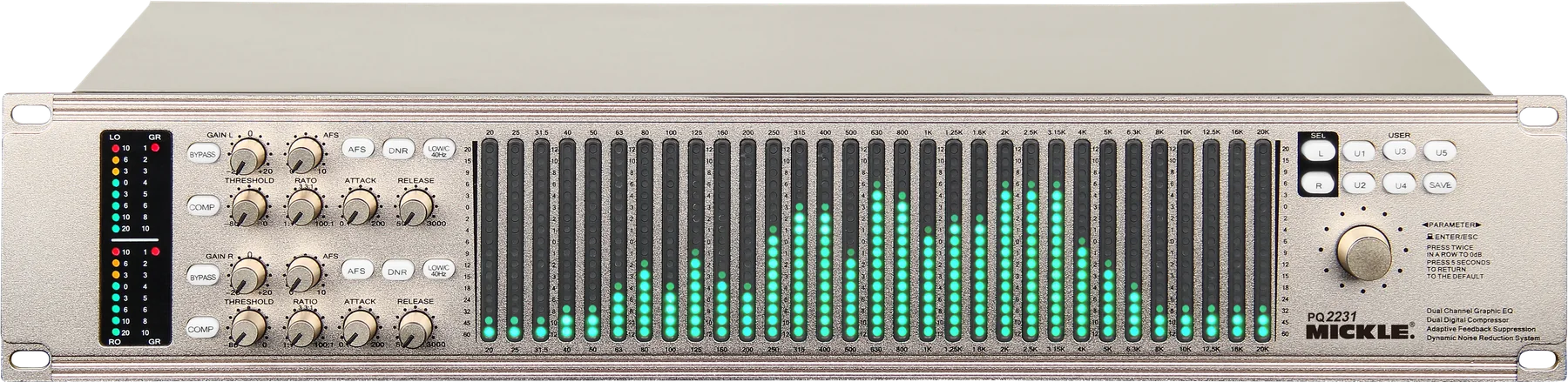

MICKLE PQ2231 Digital Equalizer

Product parameters

Equalizer format

Dual-channel 31-band, 1/3-octave constant-Q graphic EQ

Frequency response

10 Hz–22 kHz

Dynamic range

123 dB

Input gain range

−20 dB to +20 dB

Low-cut filter

40 Hz

Dynamics

Dual digital compression with dynamic noise reduction

Feedback control

Professional adaptive feedback suppression

Metering

31-band LED display with input and gain-reduction level indication

User control

Save/recall memories with one-button default restore

Connections

Balanced XLR, 1/4-inch TRS and Euroblock inputs and outputs

Protection / power

Relay bypass for power-failure protection and internal toroidal transformer

Rack format

2U rack-mount design

Dimensions

481.7 × 250 × 96.5 mm

Net weight

4.1 kg

The MICKLE PQ2231 combines two 31-band, 1/3-octave constant-Q equalizer channels with digital dynamics and feedback control. Its rack format, balanced connection options, user memories, and relay protection support studios, touring systems, performance venues, and fixed installations.

Applications
