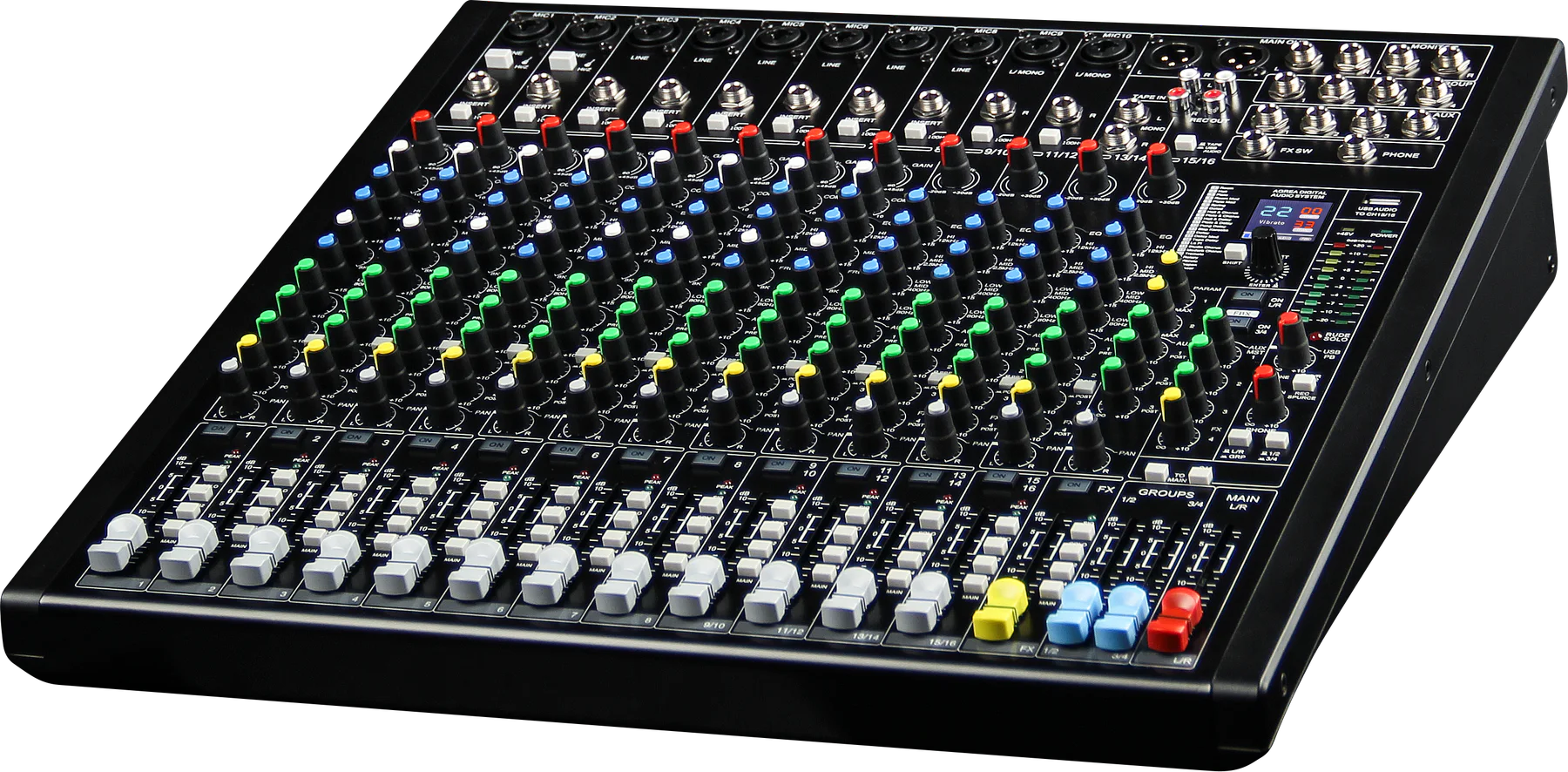

MICKLE ALPHA16 Analog Mixer
16-channel analog mixer with a clear live-control layout, media section, and integrated feedback-management workflow.
Hover to zoomNew
Product parameters
- Input format
- 8 mono + 4 stereo inputs; 16-channel format
- Hi-Z inputs
- Channels 1–2
- Channel EQ
- 3-band mono EQ with sweepable mid; 4-band stereo EQ
- Buses
- 4 groups; 4 AUX sends + 1 FX send
- Recording interface
- USB 2.0, 24-bit / 192 kHz for Mac and PC
- Effects
- Dual 24-bit DSP effects section
- Channel controls
- 60 mm faders, low-cut filter and mono compressor
- Phantom power
- +48 V
- Dimensions
- 425 × 450 × 110 mm
- Net weight
- 6.45 kg
The MICKLE ALPHA16 is designed for live events and installed systems that need tactile channel control, an easy-to-read master section, and fast on-site operation.
Applications
Live eventsHouses of worshipInstalled sound
Send InquiryRelated products
20 CHAnalog Mixers

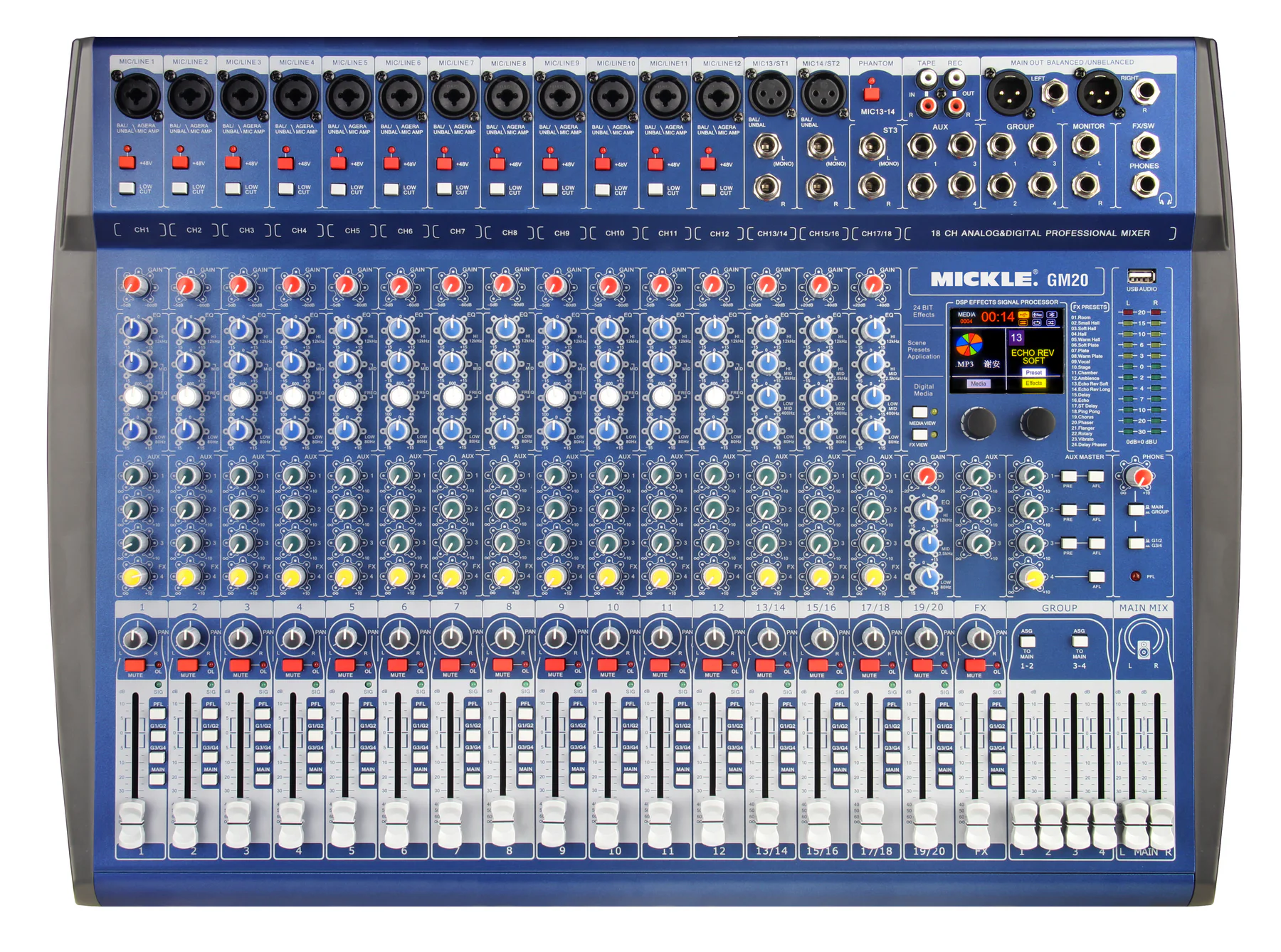

MICKLE GM20 Analog Mixer
20-channel analog mixer with a blue control surface, integrated media section, channel EQ, and group routing.
20-channel formatChannel EQGroup routing
View details
ClassicAnalog Mixers

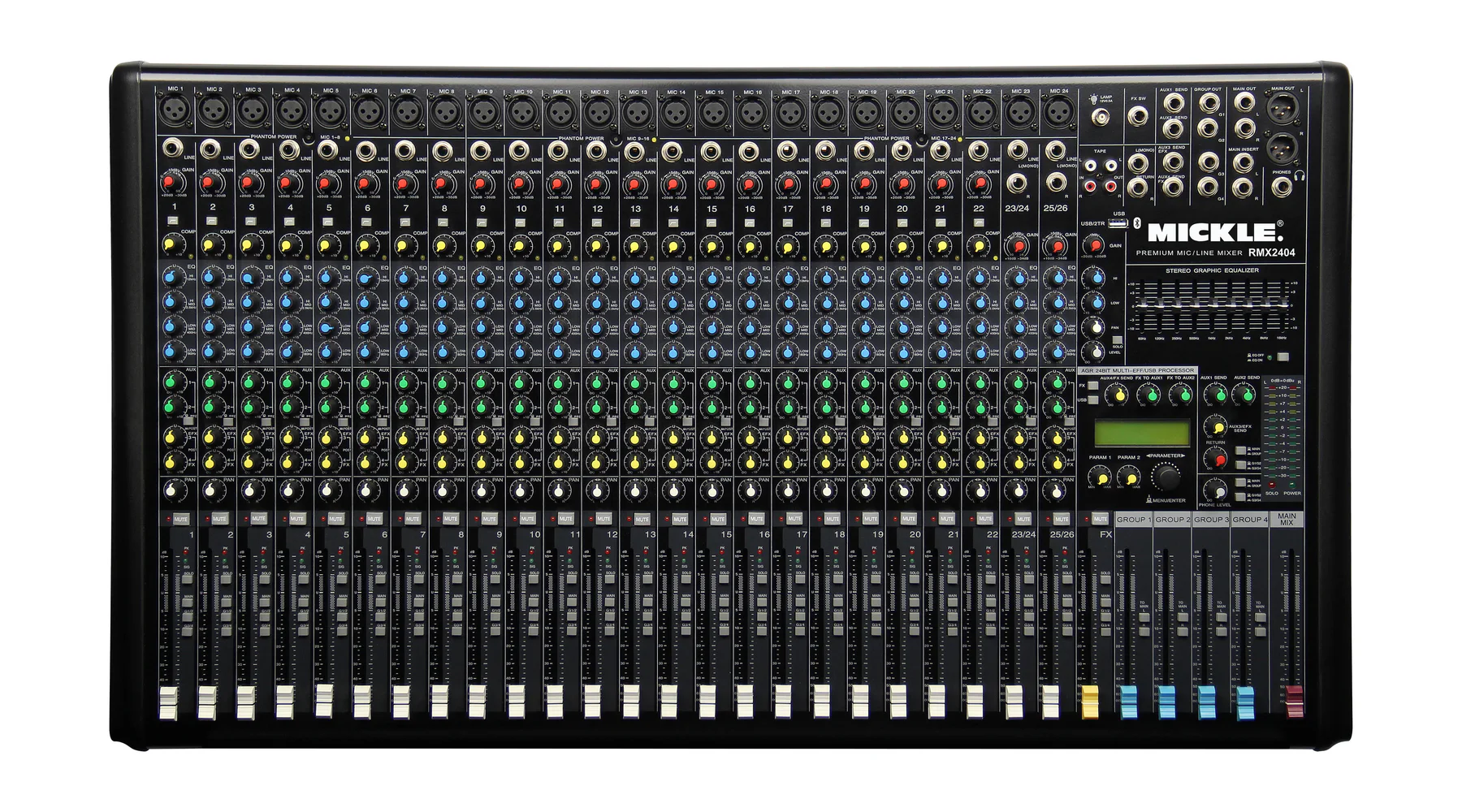

MICKLE RMX2404FX Analog Mixer
