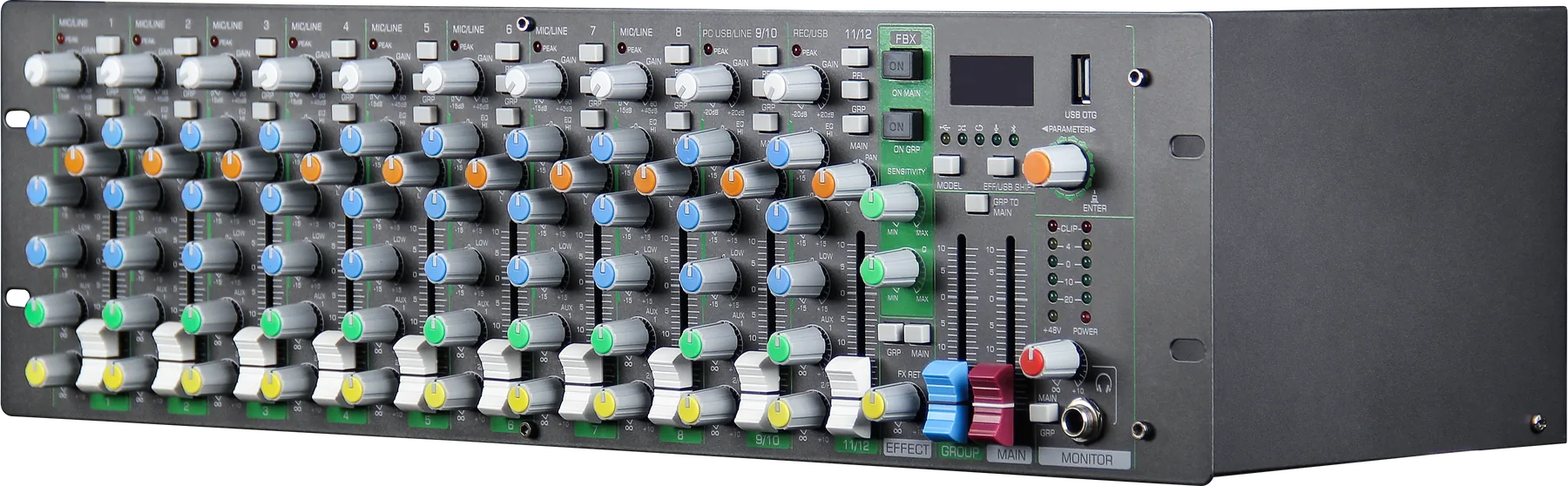

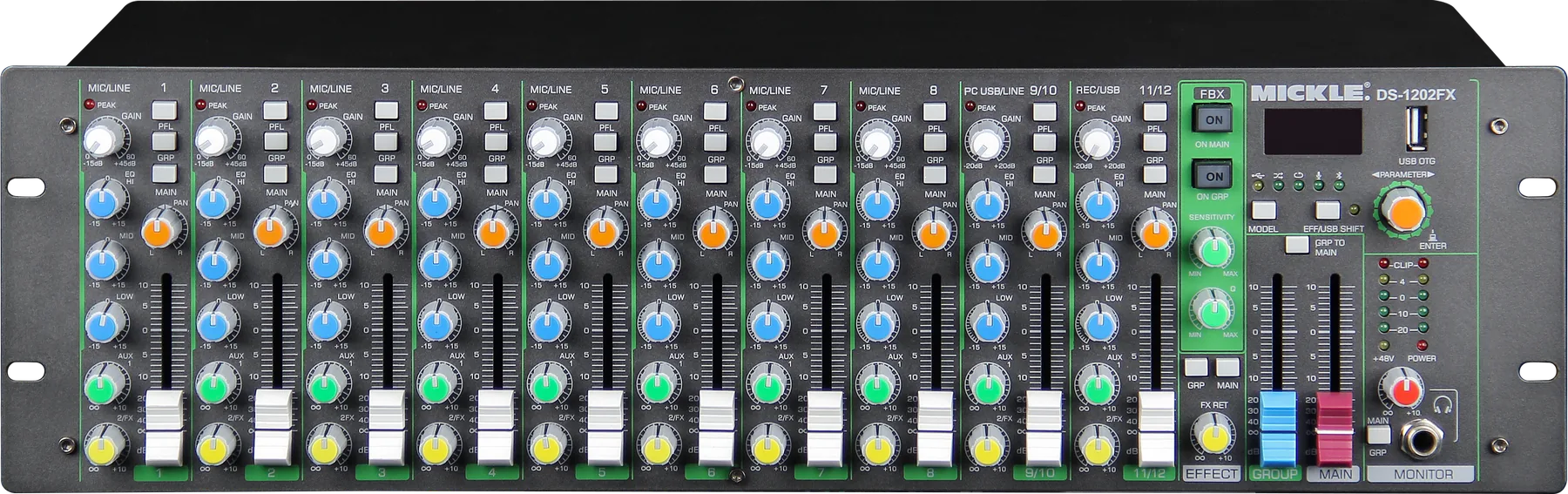

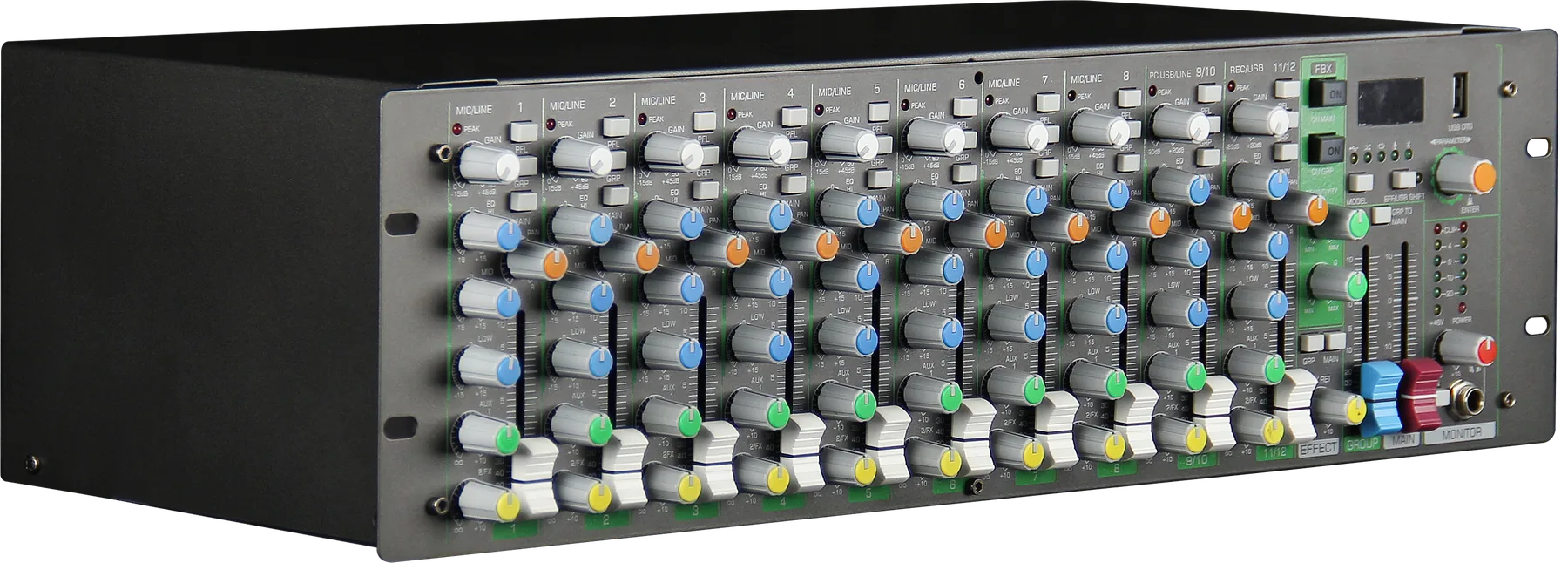

MICKLE DS-1202FX Analog Mixer
MICKLE DS-1202FX Analog Mixer expands the MICKLE DS range with a hands-on professional mixing surface for live sound and installed audio.
Hover to zoomDS FX
Product parameters
- Input format
- 12 inputs: 8 mono + 2 stereo channels
- USB audio
- PC USB 2.0 at 24-bit / 192 kHz; USB media at 24-bit / 48 kHz
- Channel processing
- High-pass filter, compressor, electronic gain and 3-band EQ
- Display / control
- Integrated LCD with 10 illuminated rotary controls
- Processing
- Dual 24 × 24-bit DSP
- Scenes
- 10 scene memories
- Feedback control
- FBX with adjustable Q and sensitivity

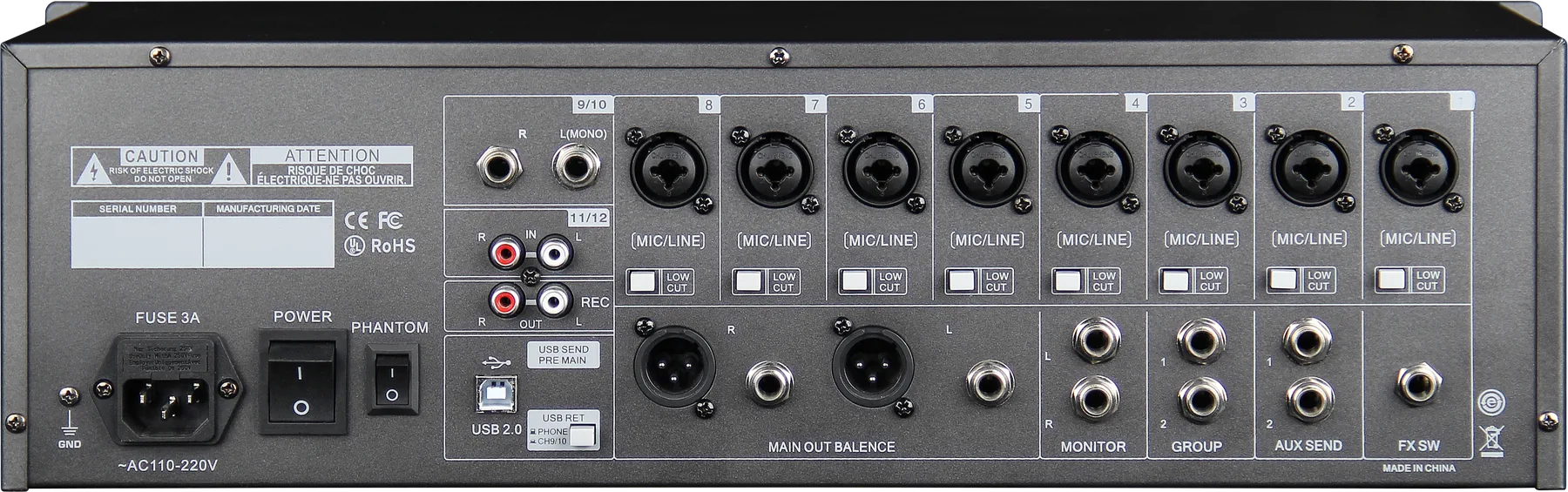

- Outputs
- AES, MAIN, SUB and AUX on XLR; monitor/effect connections on TRS
- Master processing
- 15-band graphic EQ; 100 mm faders
- Dimensions / weight
- 465 × 325 × 105 mm; 5.05 kg
MICKLE DS-1202FX Analog Mixer is part of the MICKLE DS professional mixer family. It is prepared for venues, event systems, rental users, and audio projects that value direct operation. Contact MICKLE AUDIO to confirm the required channel format, options, and OEM/ODM configuration.
Applications
Live soundInstalled audioRental systems
