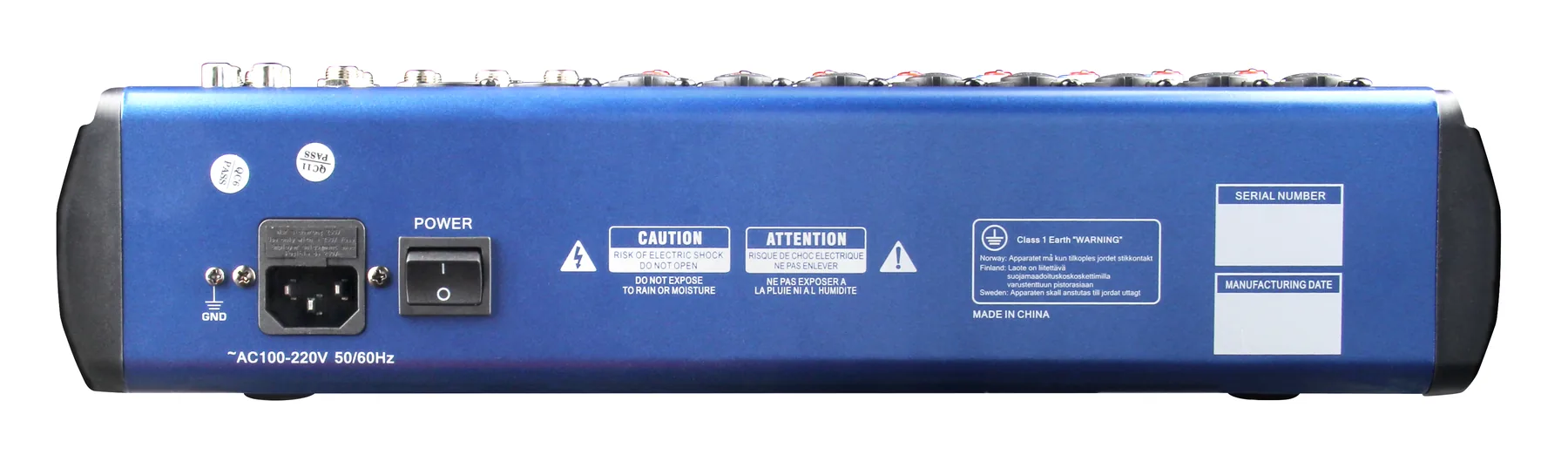

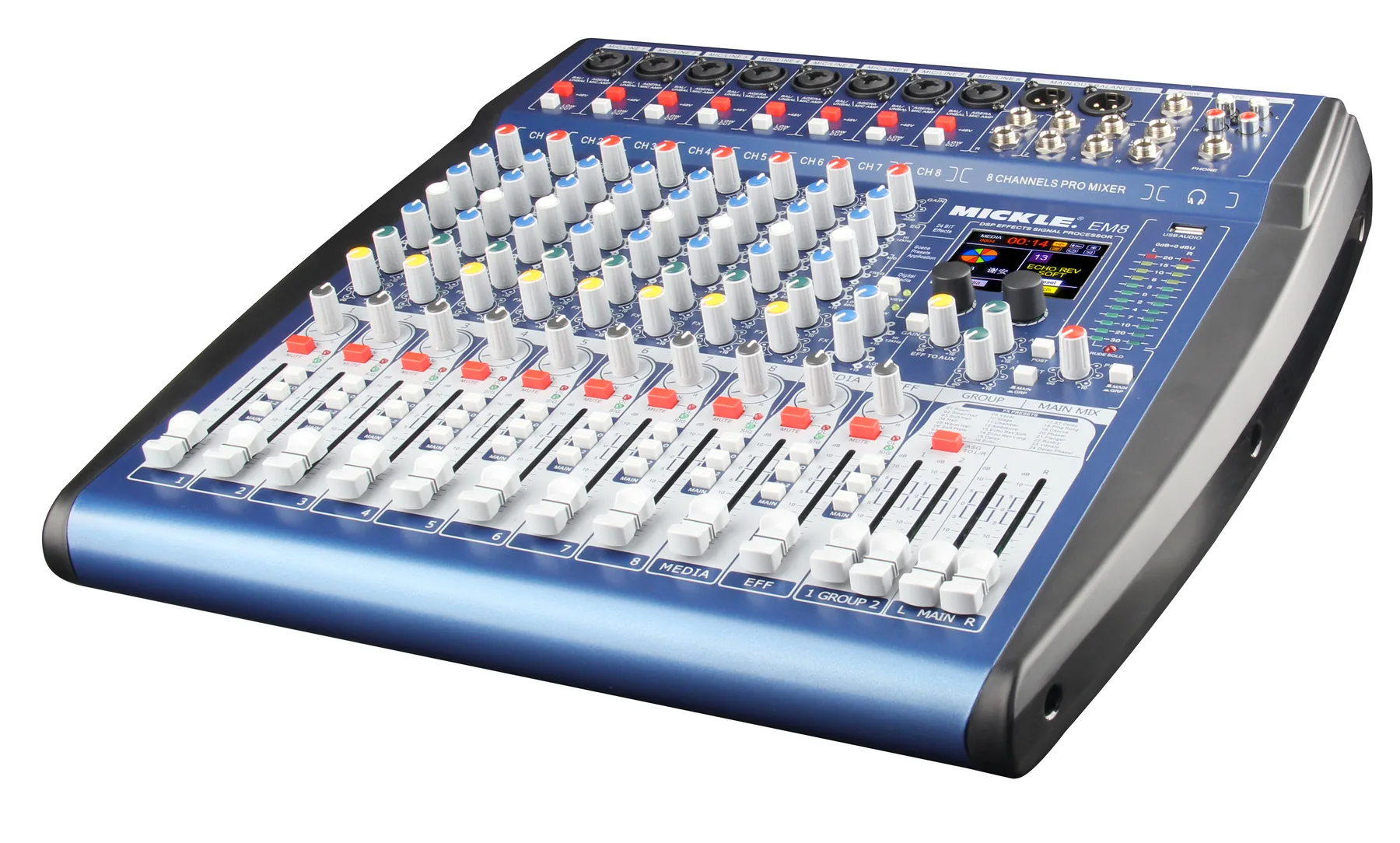

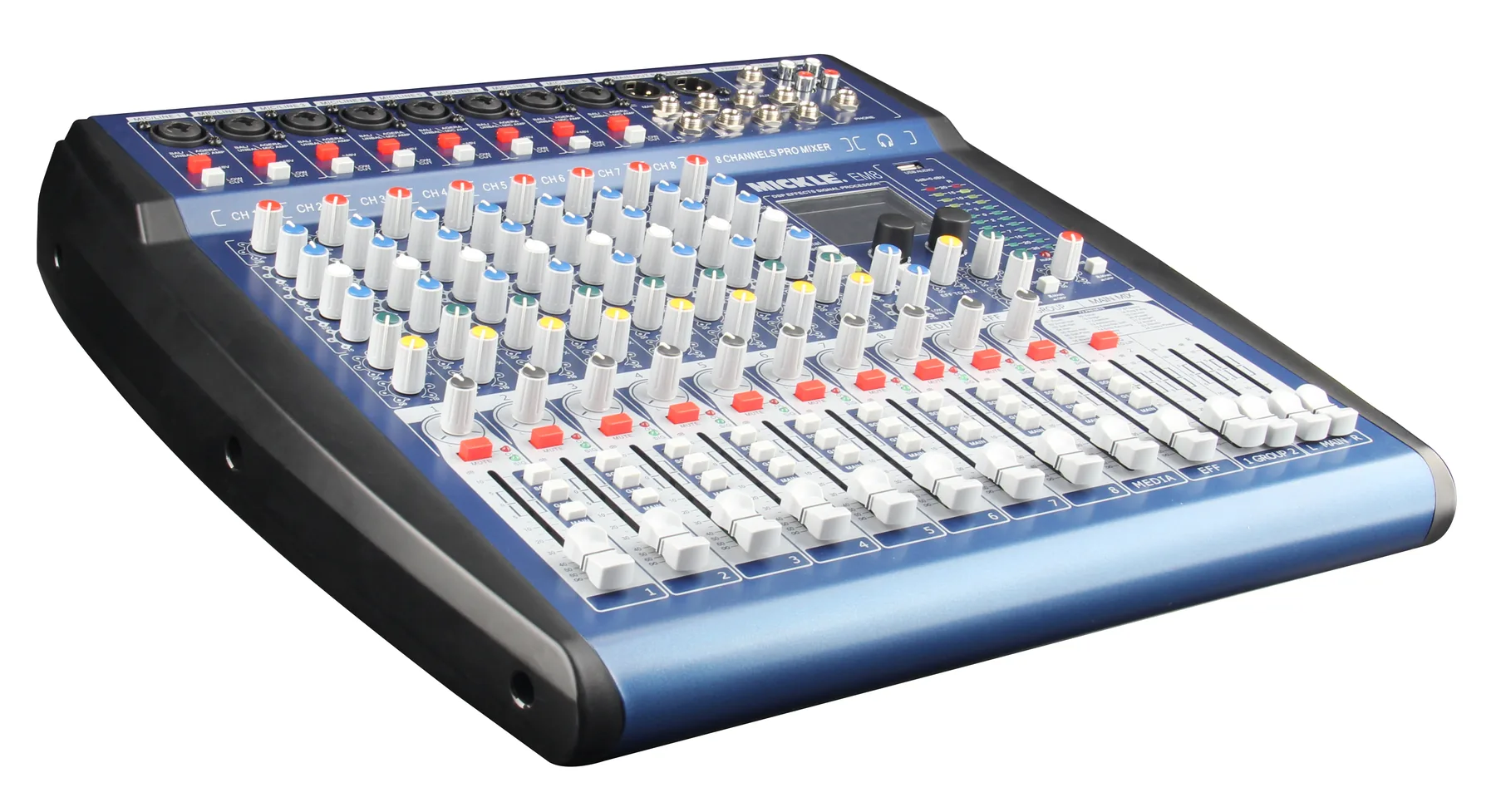

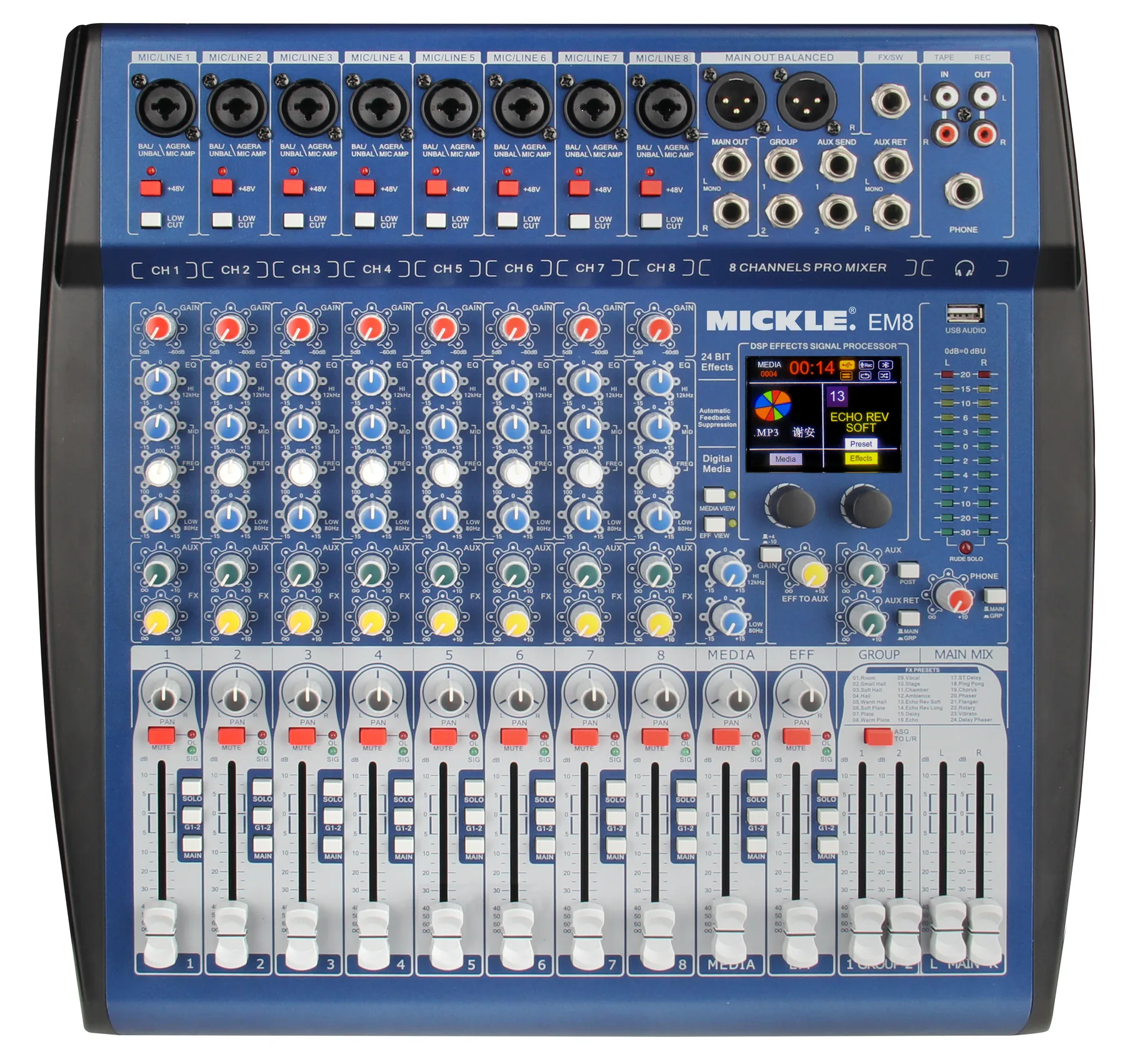

MICKLE EM8 Analog Mixer
MICKLE EM8 Analog Mixer expands the MICKLE EM range with a hands-on professional mixing surface for live sound and installed audio.
Hover to zoomEM
Product parameters
- Mono input channels
- 8
- Channel EQ
- 3-band mono EQ with sweepable mid; 4-band stereo EQ
- Buses
- 2 groups, 2 AUX sends and 1 stereo return
- Effects / media
- 24-bit DSP with scenes, Bluetooth and USB recording/playback
- Microphone preamp S/N
- 103 dB
- THD+N
- 0.01%
- Equivalent input noise
- −126 dBu
- Frequency response
- 20 Hz–40 kHz (+0/−1 dB); 20 Hz–60 kHz (+0/−3 dB)
- Phantom power
- +48 V
MICKLE EM8 Analog Mixer is part of the MICKLE EM professional mixer family. It is prepared for venues, event systems, rental users, and audio projects that value direct operation. Contact MICKLE AUDIO to confirm the required channel format, options, and OEM/ODM configuration.
Applications
Live soundInstalled audioRental systems
