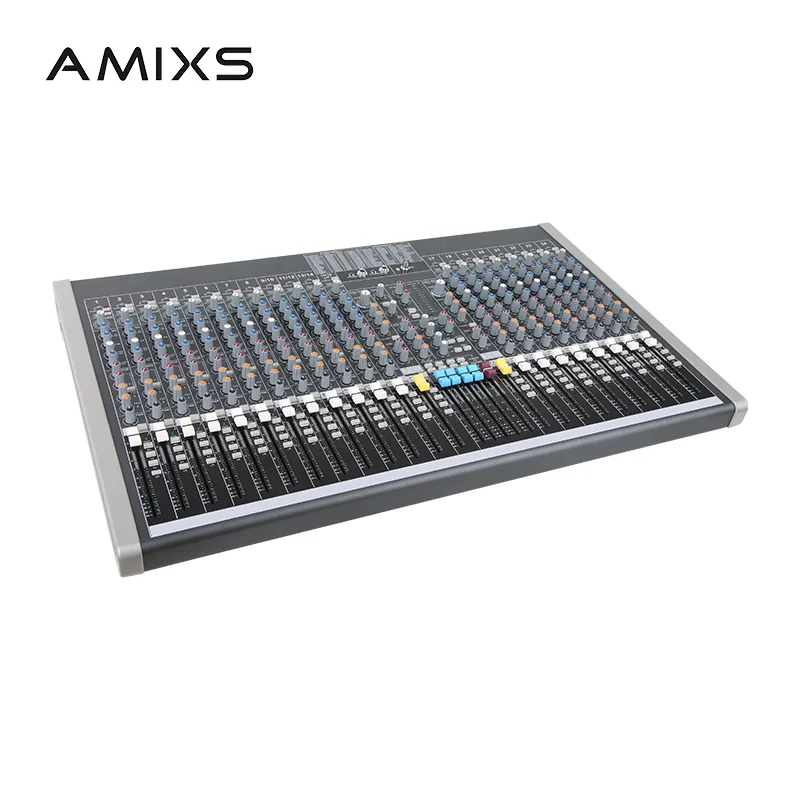

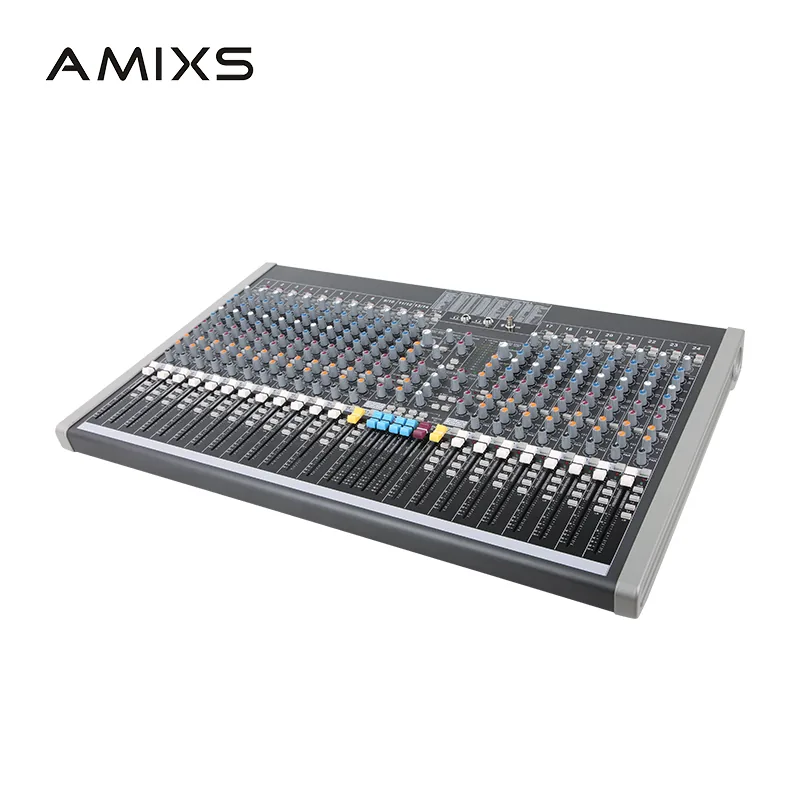

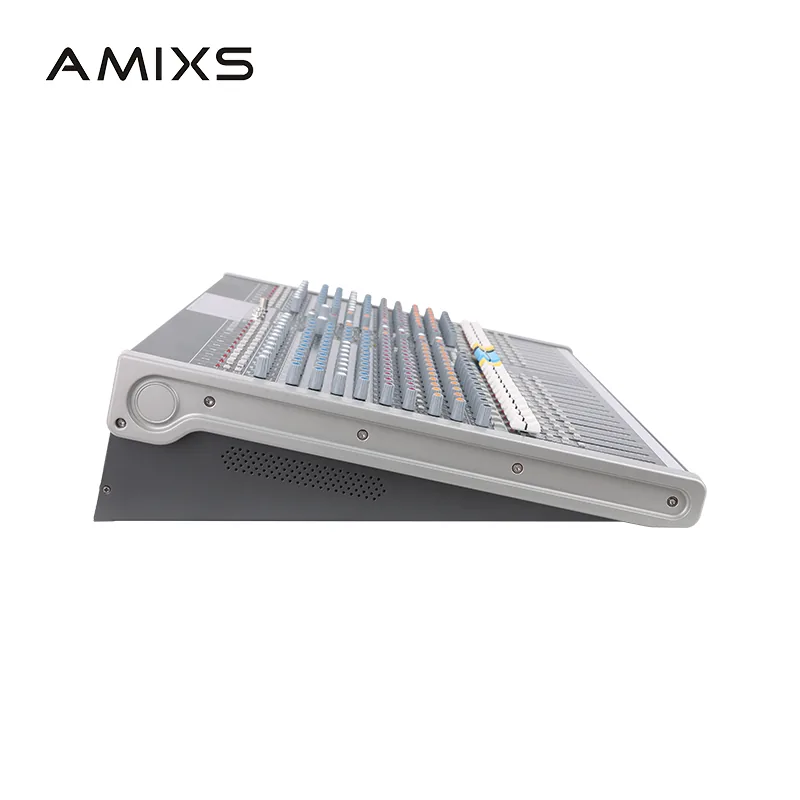

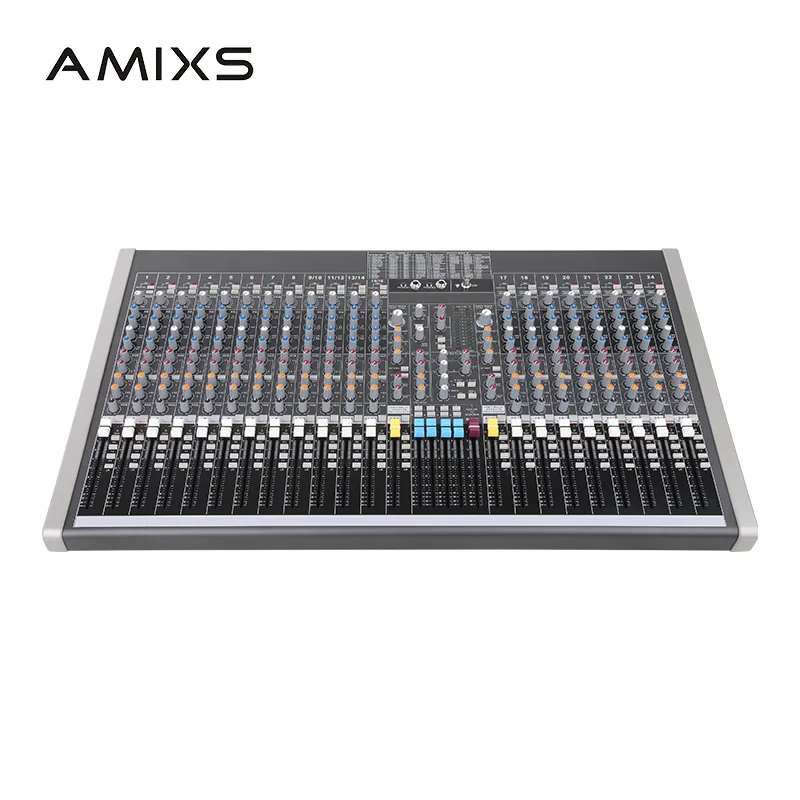

MICKLE GL2400FX Analog Mixer
MICKLE GL2400FX Analog Mixer expands the MICKLE GL range with a hands-on professional mixing surface for live sound and installed audio.
Hover to zoomGL FX
Product parameters
- Input format
- 16 mono + 4 stereo inputs
- Channel EQ
- 3-band EQ with sweepable mid
- Buses
- 4 groups; 4 AUX sends + 3 stereo returns
- Effects
- 32 DSP presets
- Faders
- 60 mm logarithmic faders
- Dynamic range
- >115 dB
- THD
- <0.007% (20 Hz–20 kHz); typically 0.003% at 1 kHz
- Equivalent input noise
- −129.5 dBu
- Phantom power
- +48 V
- Net weight
- 11.85 kg
MICKLE GL2400FX Analog Mixer is part of the MICKLE GL professional mixer family. It is prepared for venues, event systems, rental users, and audio projects that value direct operation. Contact MICKLE AUDIO to confirm the required channel format, options, and OEM/ODM configuration.
Applications
Live soundInstalled audioRental systems
