Product parameters

Format: 3U rack-mount mixer
Input format: 8 mono + 2 stereo inputs
Channel EQ: 3-band EQ
Buses: 1 AUX send + 1 stereo return; 2 stereo main outputs
Effects: 256 presets, AGR 24-bit DSP
Faders: 60 mm logarithmic faders
Media / power: Bluetooth, USB recording/playback and +48 V phantom power
Dimensions / weight: 480 × 220 × 140 mm; 4.75 kg

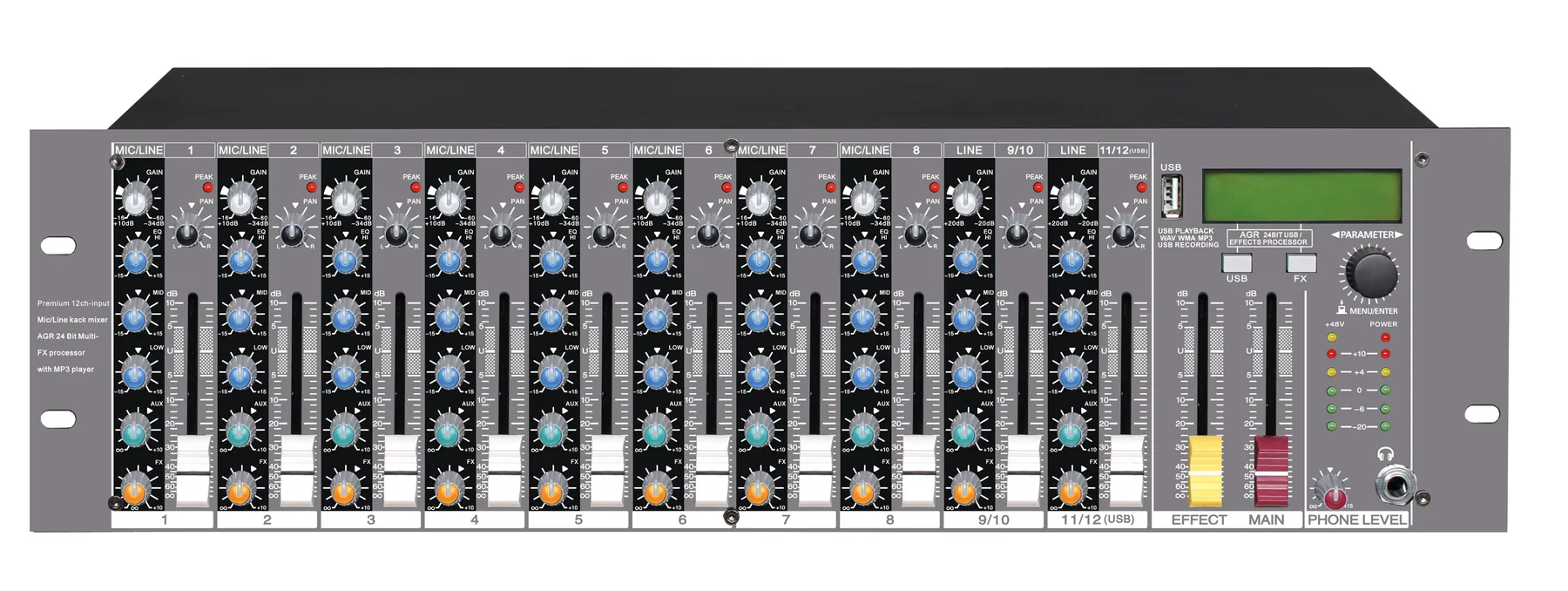

MICKLE RX-1202FX Analog Mixer combines 3u rack-mount mixer with 3-band eq in the MICKLE RX product family. Its hands-on control surface is designed for venues, event production, rental inventories, and fixed installations. Review the complete parameter table to compare routing, faders, media, and connection options. MICKLE AUDIO supports qualified OEM and ODM mixer projects.

Applications

Live soundInstalled audioRental systems

Send Inquiry

Mixer guides and resources

Compare Analog Mixers

Browse the complete MICKLE AUDIO analog mixers range and compare formats for your application.

Ask about OEM and ODM options

Share your target market, required format, branding, and order quantity for this professional analog mixer.
