Product parameters

Input format: 8 mono + 1 stereo input
USB audio: 24-bit / 48 kHz recording with OTG support
Channel EQ: 3-band EQ; 7-band stereo master EQ
Effects: 99 presets, 24-bit DSP with color display
Channel controls: 45 mm faders, mute, solo and pan
Metering / power: Dual 6-segment meter; +48 V phantom power
Dimensions: 365 × 243 × 67 mm
Net weight: 2.7 kg

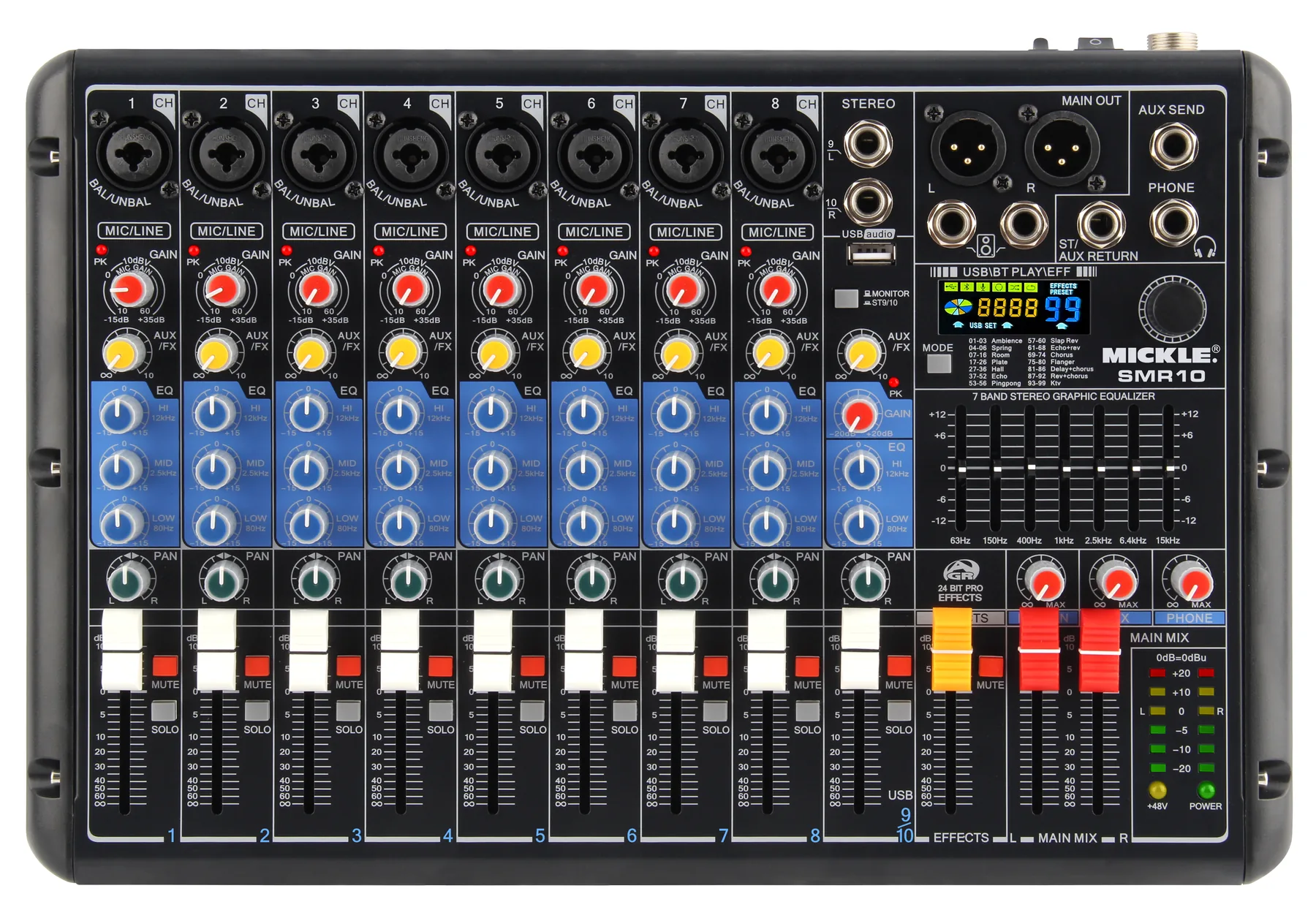

MICKLE SMR10 Analog Mixer combines 8 mono + 1 stereo input with 3-band eq; 7-band stereo master eq in the MICKLE SMR product family. Its hands-on control surface is designed for venues, event production, rental inventories, and fixed installations. Review the complete parameter table to compare routing, faders, media, and connection options. MICKLE AUDIO supports qualified OEM and ODM mixer projects.

Applications

Live soundInstalled audioRental systems

Send Inquiry

Mixer guides and resources

Compare Analog Mixers

Browse the complete MICKLE AUDIO analog mixers range and compare formats for your application.

Ask about OEM and ODM options

Share your target market, required format, branding, and order quantity for this professional analog mixer.
