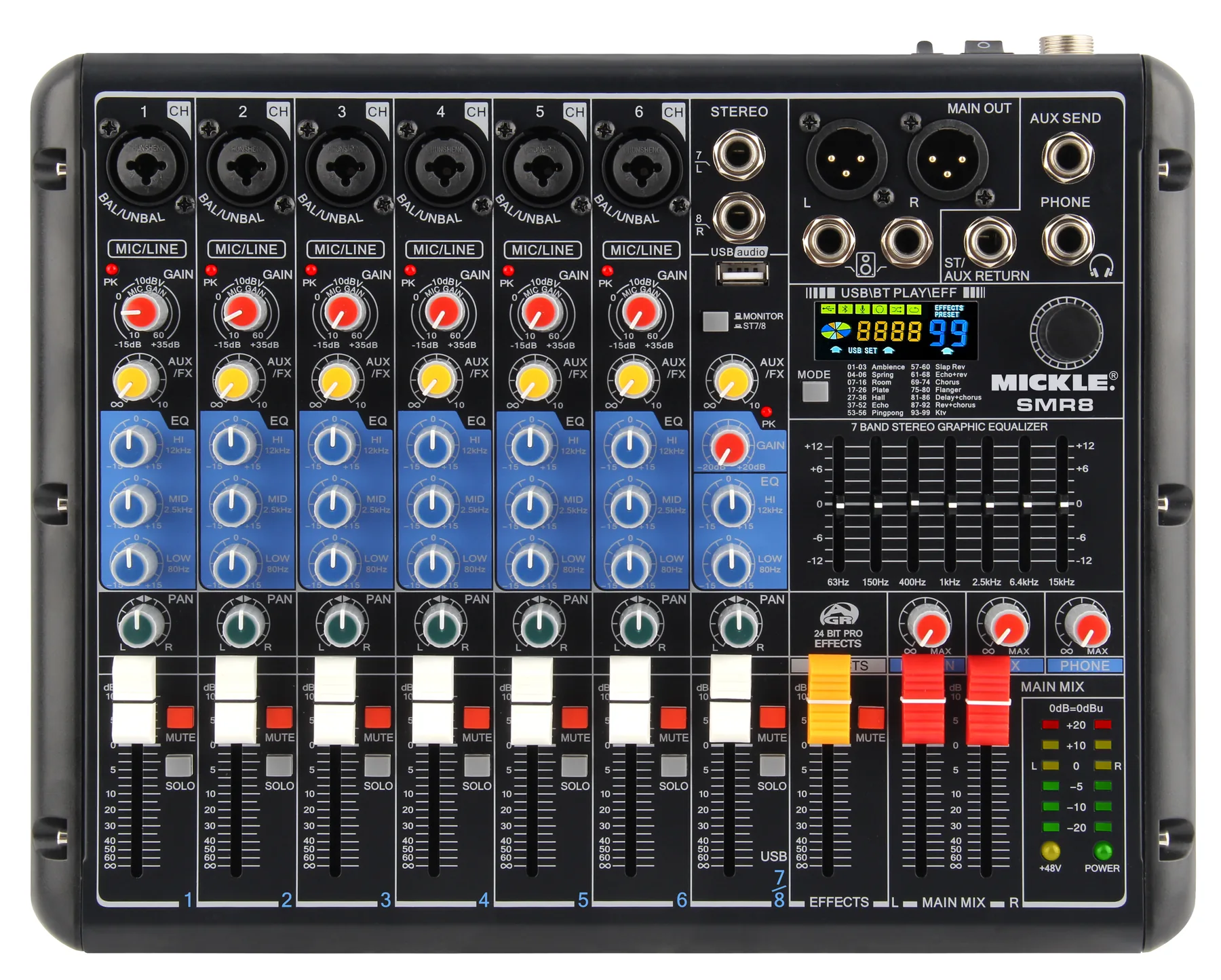

MICKLE SMR8 Analog Mixer
MICKLE SMR8 Analog Mixer is a professional analog mixer featuring 6 mono + 1 stereo input and 3-band eq; 7-band stereo master eq for live sound, rental systems, and installed audio.
Hover to zoomSMR
Product parameters
- Input format
- 6 mono + 1 stereo input
- USB audio
- 24-bit / 48 kHz recording with OTG support
- Channel EQ
- 3-band EQ; 7-band stereo master EQ
- Effects
- 99 presets, 24-bit DSP with color display
- Channel controls
- 45 mm faders, mute, solo and pan
- Metering / power
- Dual 6-segment meter; +48 V phantom power
- Dimensions
- 315 × 243 × 67 mm
- Net weight
- 2.35 kg
MICKLE SMR8 Analog Mixer combines 6 mono + 1 stereo input with 3-band eq; 7-band stereo master eq in the MICKLE SMR product family. Its hands-on control surface is designed for venues, event production, rental inventories, and fixed installations. Review the complete parameter table to compare routing, faders, media, and connection options. MICKLE AUDIO supports qualified OEM and ODM mixer projects.
Applications
Live soundInstalled audioRental systems
Send InquiryMixer guides and resources
